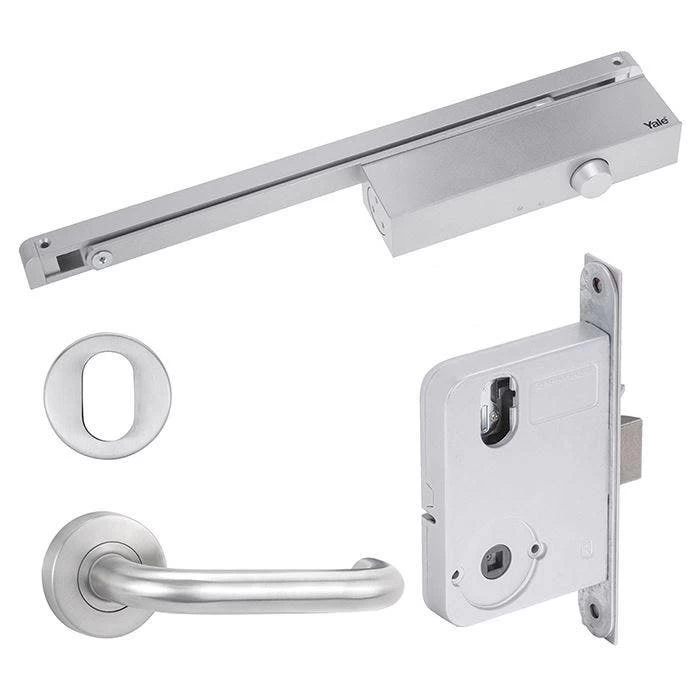

Yale Simplicity S2 Levers / Lock And Closer – Complete Door Kit – Stainless Steel

Yale Simplicity S2 Lever Complete Door Kit Stainless Steel

The Yale Simplicity Series is total door solution specifically targeted at the multi-residential development new construction market. Supplied in a consolidated door kit the Yale Simplicity Series incorporates a range of stainless steel rose door furniture, a mortice lock and door closer specifically intended for use on apartment doors.

Benefits

• Lock, door furniture and door closer all site handable and provided in a consolidated entry door kit simplifying the supply and installation process
• 2 hour fire rated
• Complimented with passage and privacy lever sets for a total apartment solution

Mortice Lock

• Suits 32mm – 45mm thick doors
• Backset – 60mm
• Latch projection – 15mm
• Door Clearance – 3mm – 5mm
• Material – Zinc Alloy case
• Stainless Steel faceplates
• Fire Rated – 2hrs

Door Furniture

• Dimensions – 54mm Dia. x 12mm H
• Escutcheon Dimensions – 46mm Dia. x 7.5mm H
• Suits 32mm – 45mm thick doors
• Material – 304 Stainless Steel
• AS1428.1 compliant
• Fire Rated – 2hrs

Door Closer

• Suit Sz3 (60kg/950mm W) doors
• Suits PULL side applications only
• Back check
• Maximum 130 degree opening
• Fire Rated – 2hrs
