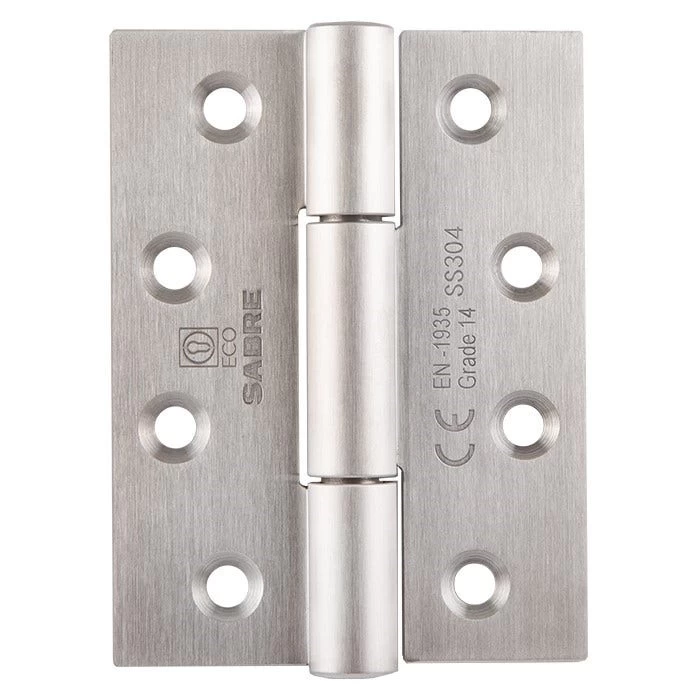

Sabre 75x100x3mm Ball Bearing Heavy Duty Hinge – Satin Stainless Steel

Sabre 75 x 100mm Ball Bearing Heavy Duty Hinge Stainless Steel

There are occasions where standard hinges just don’t get the job done. Sure, most are less expensive but over time the labour cost to keep replacing them soon adds up. Investing in quality products during the first installation is often overlooked or there hasn’t been an option available, until now. The dual branded ECO/Sabre heavy duty hinges are now an option, rather than using expensive and difficult to install pivot systems. The patented concealed ball bearing technology now allows hinges to be used on heavy high frequency use doors. All hinges come with Australian standard hinge patterns so they can be used on commercial metal frames such as fire doors.

• Suitable for timber and metal frames
• 3mm frame prep required
• 8x 10g x 35mm timber and 4x M5 x 12mm undercut metal screws

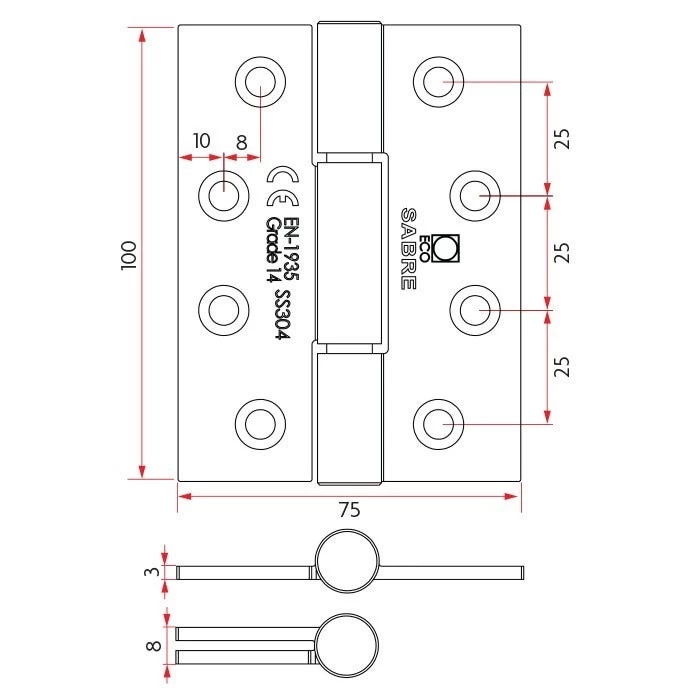

• 75mm W x 100mm H

Patented Concealed Ball Bearing Unit

• The ball bearing works in all direction (radial/axial) and ensures a well balanced door
• Ball bearing perfectly embedded in the hinge unit

One Compact Unit

• Strong stainless steel unit around the bearing with a thickness of 8mm (top/bottom) and 2mm (side)
• Design provides extra security and avoids the hinge being pried open
• No risk that the cover cap drops and the pin falls out after low to medium usage
• No misalignment of components after usage (e.g. hinge bearings or pin used in regular butt hinges)

Seamless Hinge Design

• Elegant, minimalistic and clean design

Self-Lubricating Bearing (Grease and Oil-Free)

• No grease leakage
• No dirt on the doors
• Maintenance free
• 1 million cycle tested (e.g. 100 openings/day > 27 years)
