Raven RP98 Threshold Plate 19mm – Clear Anodised Aluminium
Original price was: $148.37.$99.99Current price is: $99.99.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

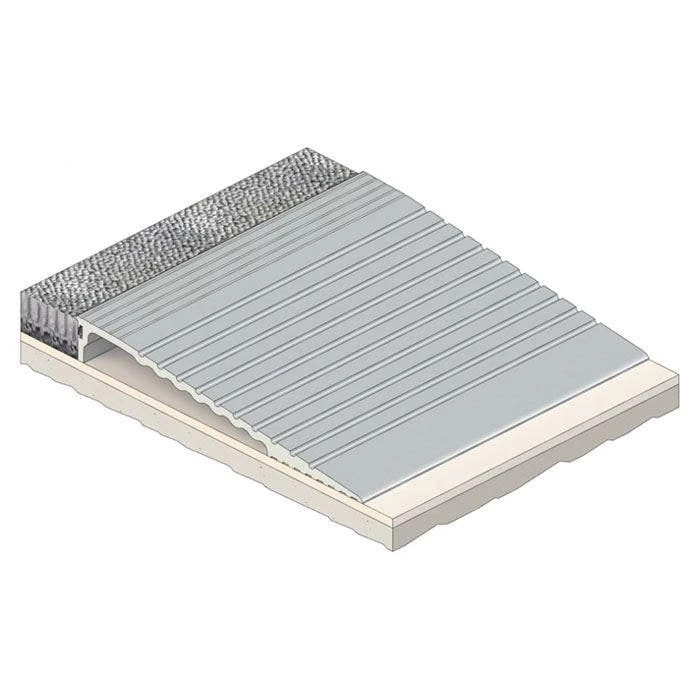

A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).
Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.
Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.
Can also be used to provide a ramped frame for internal door mats.
Location: Door sill.
Finish: Satin clear (silver) anodised aluminium (25micron).
Fixing: Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Can be fastened with builders adhesive for concealed fixing.
Sizes: Available in stock lengths.
Specify longer length than doorway to allow for neat installation around door frame.
Approvals
UL Cert. GVYI.R37913
Access & Mobility AUS/NZ: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
UK/EU: Approved Document M.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30. Fire Approved
Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.
| Product Length | 1000mm, 1250mm, 2000mm, 2500mm, 3000mm |
|---|---|
| MPN | A98C |
| Brand | Raven |
| Product Width | 150mm |
| Product Height | 19mm |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Material | Aluminium |
| Includes Fixing Screws | Yes |
| AS1428.1 Compliant | Yes |
| Fire Tested | Yes |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Product Warranty | 2 Years |
