Raven RP81 Door Bottom Sweep Seal 120mm – Clear Anodised Aluminium
Original price was: $61.92.$43.34Current price is: $43.34.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

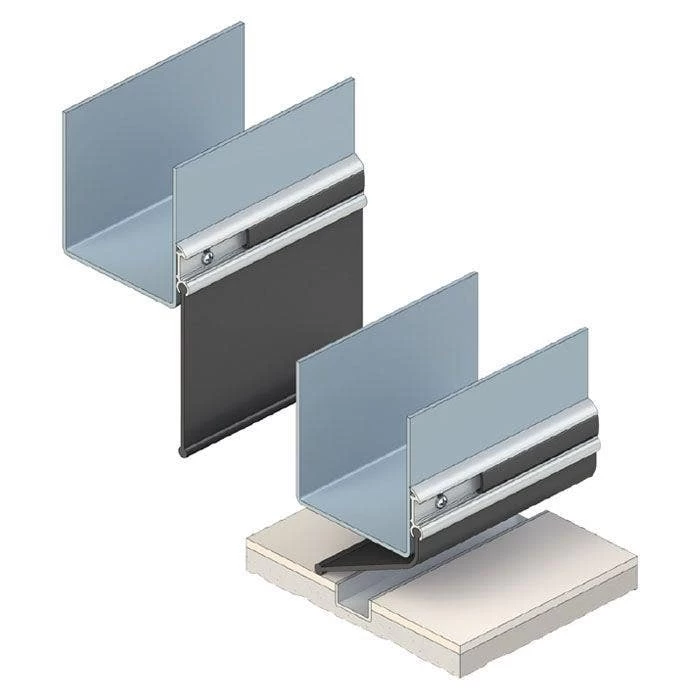

A heavy duty EPDM sweep seal for door bottoms of outward opening doors with large gaps up to 120mm. Ideal for industrial sliding doors. This seal has slotted holes for adjustment with a push-in cover strip for concealment of fasteners.
The RP81 is ideal for use in conjunction with Raven threshold Plates RP82 and RP29.
Location: Bottom of single and double outward opening doors or industrial sliding doors.

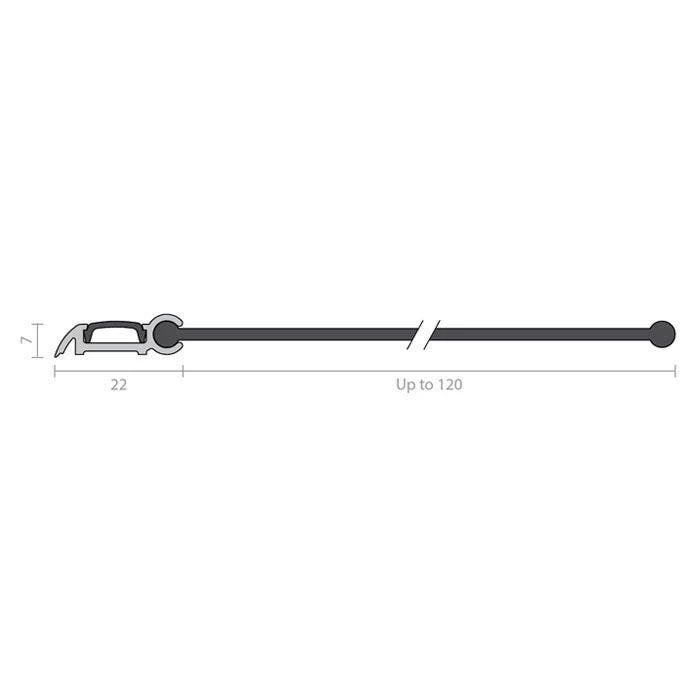

Min/Max Gap: Up to 120mm (seal can be slit to suit on site).
Finish: Satin clear (silver) anodised aluminium (15µm).
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP381. Black EPDM.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 120mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Brush / Gasket Length | 120mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | No |
| MPN | A81C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 7mm |
| Product Height | 142mm |
| Brand | Raven |
| Product Warranty | 2 Years |
