Raven RP74F Brush Seal 13mm – Clear Anodised Aluminium
Original price was: $52.78.$36.95Current price is: $36.95.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A nylon brush strip seal that is ideal for sliding or double acting doors. Can also be used for the stiles of tilt-up doors. The brush houses a unique medium temperature fin, which is effective in the sealing of medium temperature smoke, noise and weather. Used in conjunction with Raven threshold plates

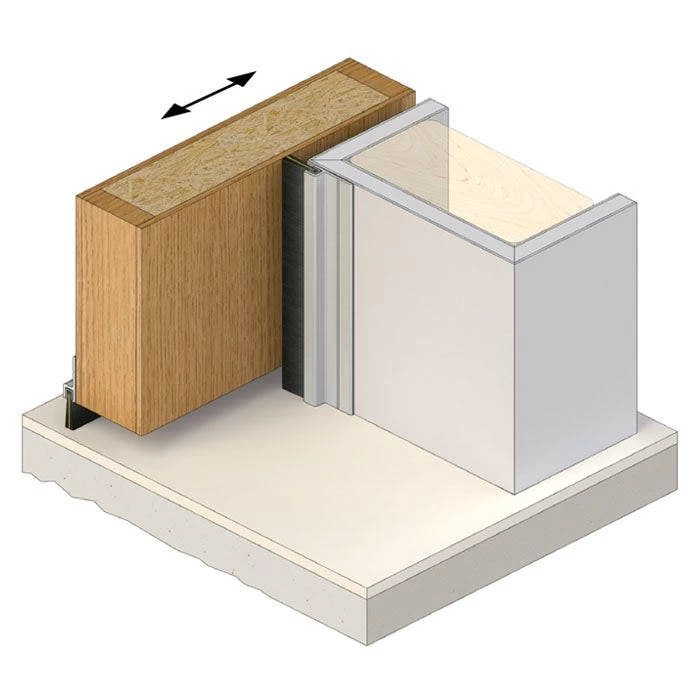

Location: Frames or bottoms of single, double, sliding and double acting doors as well as stiles of tilt up doors.
Min/Max Gap: Up to 13mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black fine, dense, UV stabilised nylon filaments with a medium temperature smoke barrier fin.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approved when used on a garage in accordance with AS 3959.Â
| Door Seal Length | 1250mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | Yes |
| Max Door Gap | 13mm |
| Gasket Material | Nylon Brush |
| Brush / Gasket Length | 13mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| MPN | A74FC |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 7mm |
| Product Height | 33mm |
| Brand | Raven |
| Product Warranty | 2 Years |
