Raven RP71 Astragal Meeting Stile Seal – Clear Anodised Aluminium
Original price was: $21.32.$14.92Current price is: $14.92.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
An astragal seal designed for plain or rebated meeting stiles of timber double doors where a centre latch bolt may be required or, where both doors are active. The unique quiet fin of the RP71 is effective in acoustic and weather applications. Two RP71 seals are installed on to the one door stile which allows space for a latch between the two seals.
The legs of the seals can be checked out to accommodate the latch bolt front plate providing a continuous seal.
Note: Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals.
Location: Meeting stiles of double butt hinged and centre pivot double acting doors.
Min/Max Gap: 3mm to 4mm.
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-drilled and countersunk.
Seal: Black polypropylene pile with felt weather fins.
Sizes: Available in stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 2250mm, 2500mm, 2750mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 4mm |
| Min Door Gap | 3mm |
| Gasket Material | Polypropylene |
| Seal Can Be Installed | Rebated / Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<29 |
| Suitable for Smoke Doors | Yes |
| MPN | A71C |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

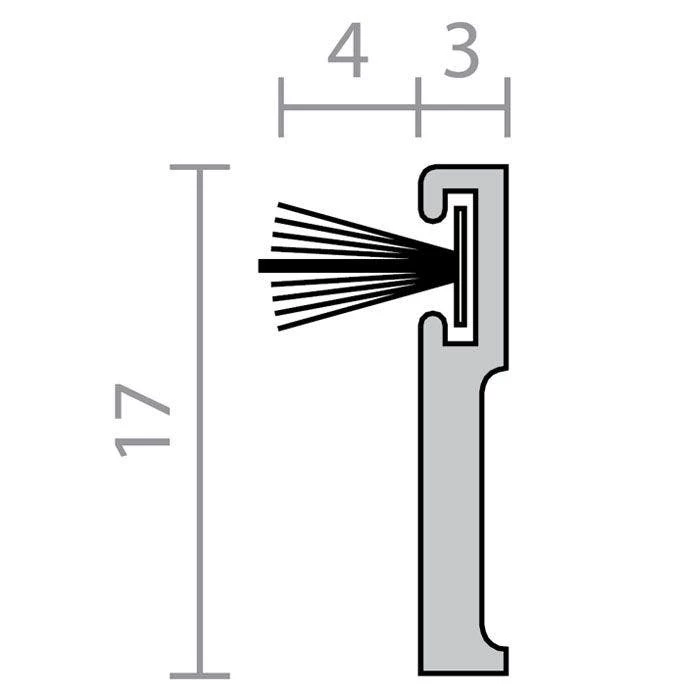

| Product Thickness | 7mm |
| Product Width | 17mm |
| Brand | Raven |
| Product Warranty | 2 Years |
