Raven RP70 Automatic Door Bottom Seal – Clear Anodised Aluminium
Original price was: $147.29.$96.99Current price is: $96.99.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, featuring an EPDM foam gasket for acoustic door applications. RP70 is operated automatically by pressure against the door jamb on its adjustable brass strike.

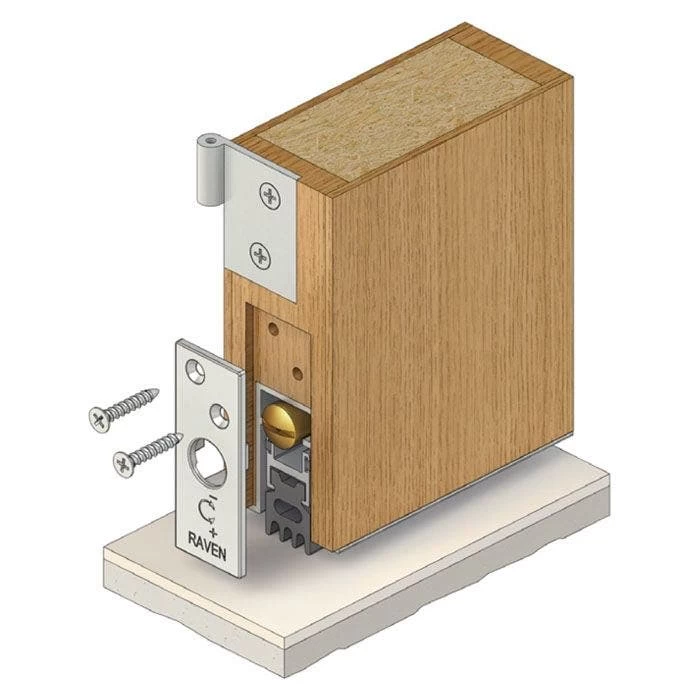

Location: Fully morticed into the bottom of single and double butt hinged doors (minimum door thickness of 45mm). For double doors, plain meeting stiles are required.

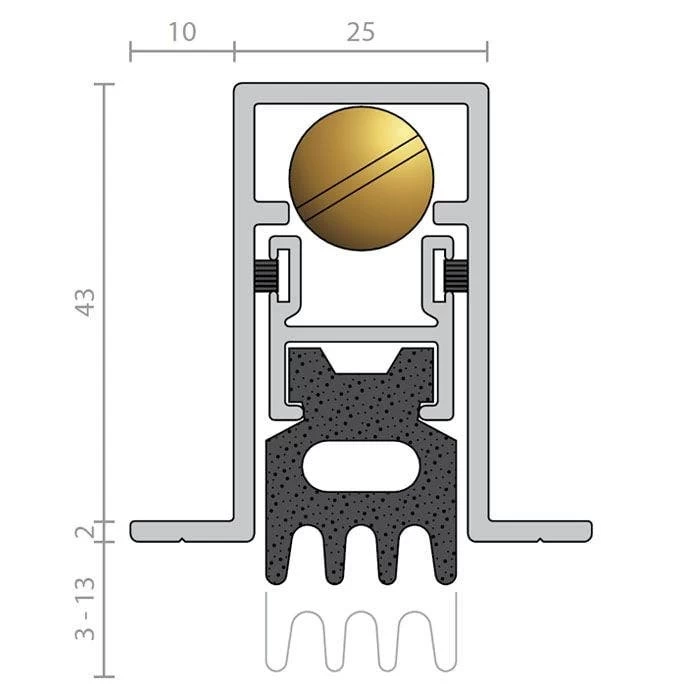

Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver) anodised aluminium (15micron).
Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal:RP338. Black EPDM sponge (SE).
Sizes: 1500mm, 1220mm, 1070mm, 920mm, 610mm, 450mm to 300mm(min). Seals cut back to exact size.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240. Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 1,000,000 operating cycles without failure.
| Door Seal Length | 920mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Max Door Gap | 13mm |
| Min Door Gap | 3mm |
| Min Door Thickness | 45mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Concealed |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | Fire Zone |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| MPN | A70C |
| Suitable for Smoke Doors | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 45mm |
| Product Height | 45mm |
| Brand | Raven |
| Product Warranty | 2 Years |
