Raven RP65 Magnetic Astragal Seal – Clear Anodised Aluminium
Original price was: $73.37.$51.36Current price is: $51.36.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

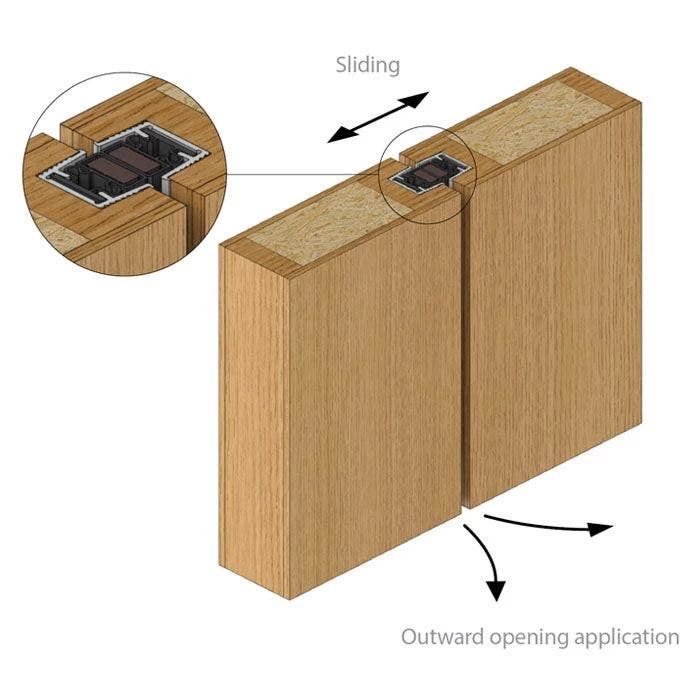

A refrigeration type vinyl magnetic strip in an anodised aluminium channel which is morticed into the stiles of pivot, sliding or butt hinged double doors, to form an effective astragal. The magnetic strip is locked in place to prevent creeping and has sufficient strength that latches may not be required (centre latching can not be used).
Can be used in conjunction with Raven door bottom and perimeter seals.
Note: RP65 is best suited to infrequent use and door closer hold open applications.
Location: Meeting stiles of double swinging and sliding timber doors.
Min/Max Gap: 5mm to 7mm. (Swing doors).
Finish: Satin clear (silver) anodised aluminium (15micron).
Fixing: Push-in locking fit into a 16.5mm x 12mm deep groove and optional adhesive. Minimum door thickness of 40mm required.
Seal: Black PVC with magnetic strip.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 2250mm, 3000mm |
|---|---|
| Bush Fire Attack Level | BAL <29 |
| Self Adhesive | No |
| Max Door Gap | 7mm |
| Min Door Gap | 5mm |
| Gasket Material | Magnetic Vinyl |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Suitable for Door Type | Timber Doors |
| MPN | A65C |
| Suitable for Smoke Doors | Yes |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | No |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 12mm |
| Brand | Raven |
| Product Warranty | 2 Years |
