Raven RP58 Brush Seal 75mm – Clear Anodised Aluminium

Nylon brush strip seals with aluminium carriers that are ideal where larger gaps are encountered. They can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas.
Note: Roll-up doors must have a fairly consistent gap when the door operates to avoid excessive flexing of the seal.

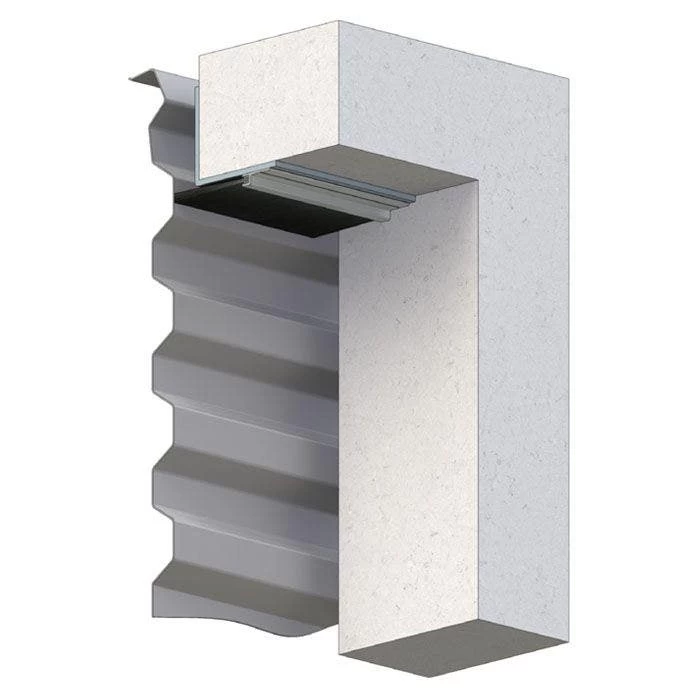

Location: Bottom of single, double, revolving or sliding doors and double acting pivot doors. Lintels of roll-up garage doors.

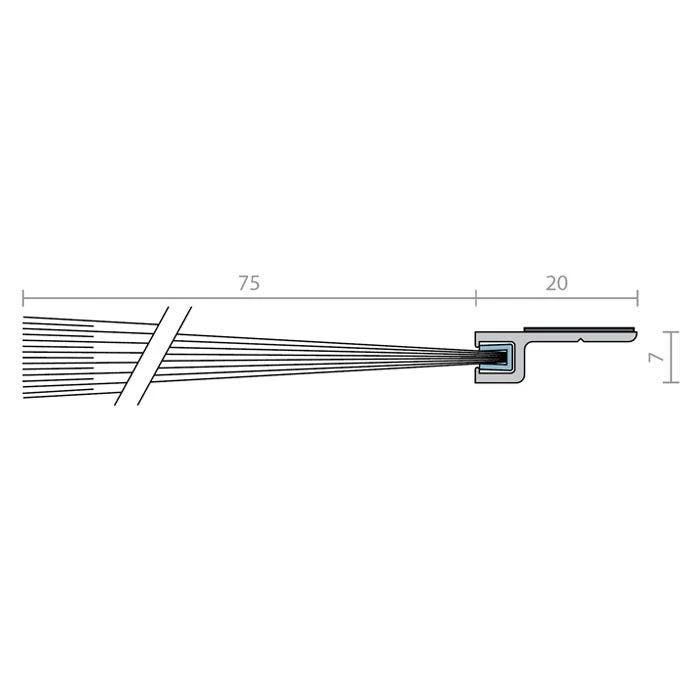

Min/Max Gap: 50mm to 75mm (user determined).
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black fine, dense, UV stabilised nylon filaments.
Sizes: Available in stock lengths.

Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approved when used on a garage in accordance with AS 3959.
