Raven RP57 Brush Seal 50mm – Clear Anodised Aluminium
Original price was: $74.69.$52.28Current price is: $52.28.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
Nylon brush strip seals with aluminium carriers that are ideal where larger gaps are encountered. They can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas.
Note: Roll-up doors must have a fairly consistent gap when the door operates to avoid excessive flexing of the seal.

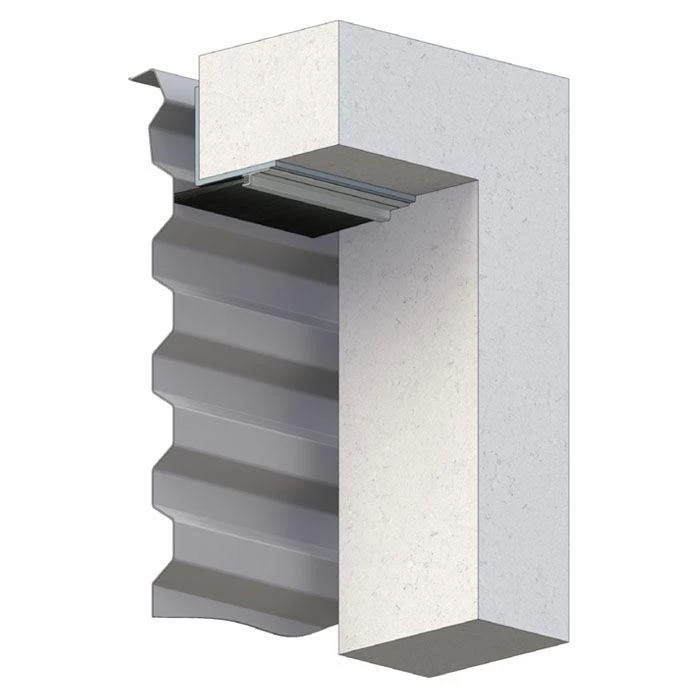

Location: Bottom of single, double, revolving or sliding doors and double acting pivot doors. Lintels of roll-up garage doors.
Min/Max Gap: 30mm to 50mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black fine, dense, UV stabilised nylon filaments.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approved when used on a garage in accordance with AS 3959.
| Door Seal Length | 1000mm, 2000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | Yes |
| Max Door Gap | 50mm |
| Min Door Gap | 30mm |
| Gasket Material | Nylon Brush |

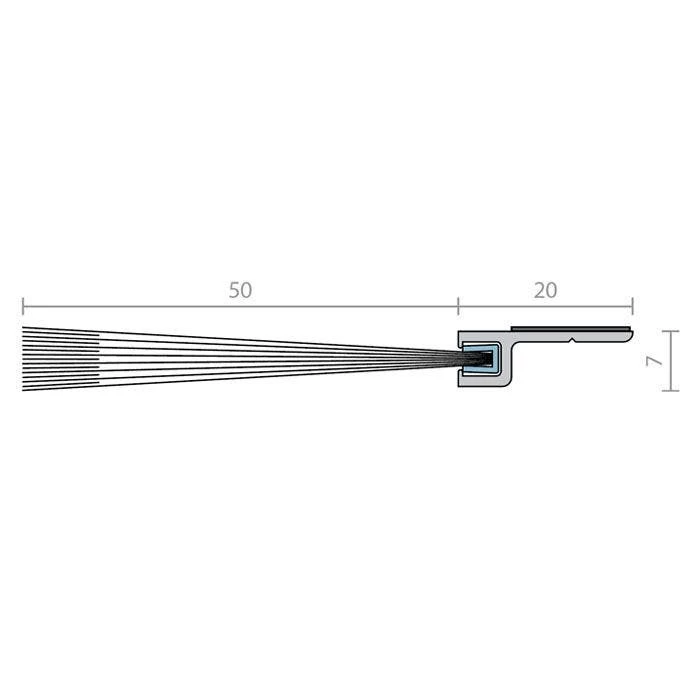

| Brush / Gasket Length | 50mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | No |
| MPN | A57C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 7mm |
| Product Height | 70mm |
| Brand | Raven |
| Product Warranty | 2 Years |
