Raven RP54 Door Bottom Sweep Seal 25mm – Clear Anodised Aluminium
Original price was: $73.55.$51.49Current price is: $51.49.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

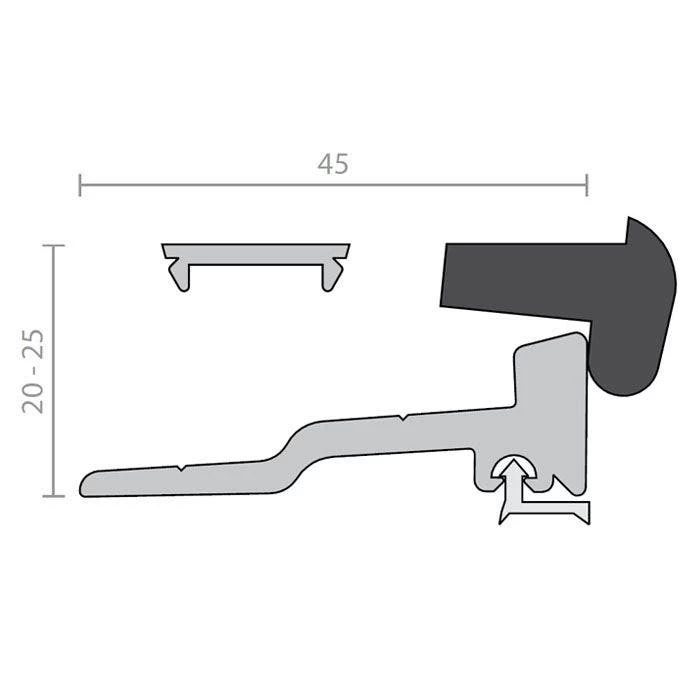

A heavy duty storm proof weather seal ideal for residential and commercial applications where maximum weather protection is required. The RP54 (Daniels Patent) is a door bottom seal and threshold plate combination suitable for inward opening butt hinged doors.
Can be used in conjunction with Raven door frame or perimeter seals.
Location: Bottom of single and double inward opening butt hinged timber doors.
Min/Max Gap: 22mm to 25mm.
Finish: Satin clear (silver) or bronze anodised aluminium (25micron).
Fixing: Screw and nail fix. Zinc plated, cross recess head S.T. screws and zinc plated nails supplied.
Seal: RP354. Black EPDM. RP404a. Grey flexible PVC.
Sizes: Available in stock lengths.
Approvals
Access & Mobility NZ: NZ BC Compliance Doc. D1/AS1 1.3.2.
Fire AUS/NZ: AS1530.4 & AS/NZS 1905.1.
UK/EU: Tests above are similar to BS EN 1634-1, BS 476 Pt. 20 & 22.
FRL & FRR-/60/30 and FD60. Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 915mm, 1000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 25mm |
| Min Door Gap | 22mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<LOW |
| Suitable for Smoke Doors | Yes |
| MPN | A54C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 8mm |
| Product Height | 22mm |
| Brand | Raven |
| Product Warranty | 2 Years |
