Raven RP52F Brush Seal 13mm – Brush Only
Original price was: $29.15.$20.41Current price is: $20.41.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

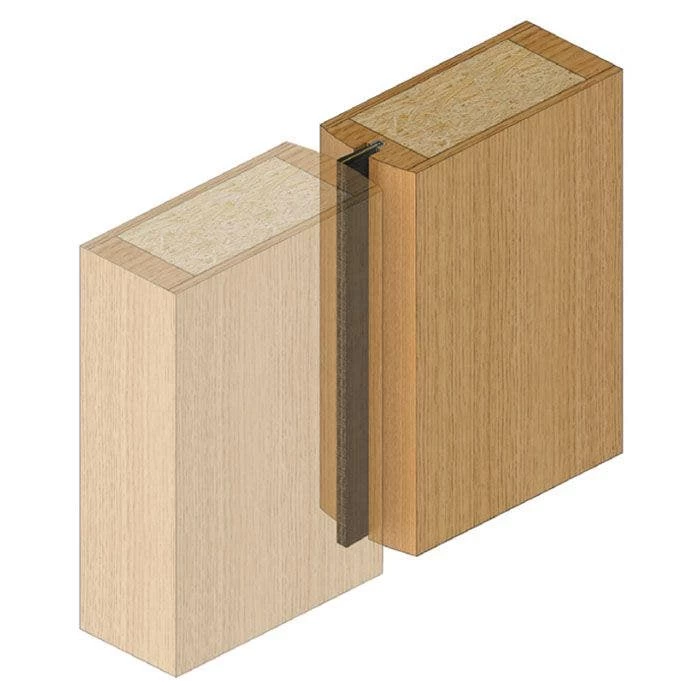

A nylon brush strip without holder, that is fitted in a concealed manner into a machined groove in a door. Where a small clearance is encountered, the groove should be double morticed to allow the brush and fin to flex. The brush houses a unique medium temperature fin, which is effective in the sealing of medium temperature smoke, noise and weather.
Location: Stiles or bottoms of single, double, sliding or double acting doors.
Min/Max Gap: Up to 13mm (user determined).
Fixing: Inserted into morticed groove (optional adhesive if required). Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex.
Seal: Black fine, dense, UV stabilised nylon filaments with a medium temperature smoke barrier fin within a galvanised spine.
Sizes: Available in stock lengths.
Approvals
Smoke AS1530.7. AS6905.
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approved when used on a garage in accordance with AS 3959.
Patented.
| Door Seal Length | 1250mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 13mm |
| Gasket Material | Nylon Brush |
| Gasket / Seal Colour | Black |
| Brush / Gasket Length | 13mm |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| MPN | A52F |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | No |
| Product Material | Nylon |
| Product Finish or Colour | Black (BLK) |
| Product Thickness | 3.5mm |
| Product Height | 17mm |
| Brand | Raven |
| Product Warranty | 2 Years |
