Raven RP520 Silicon Weather Strip
Original price was: $102.20.$71.54Current price is: $71.54.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A compression seal, made from silicon. Raven silicon has a high resistance to permanent set (memory). It will not absorb water and is resistant to ozone and ultra-violet light deterioration.
Location: Aluminium, PVC or timber door and window frame grooves where dimensions suit.
Compression: 1mm to 3mm.
Finish: White, brown or black.

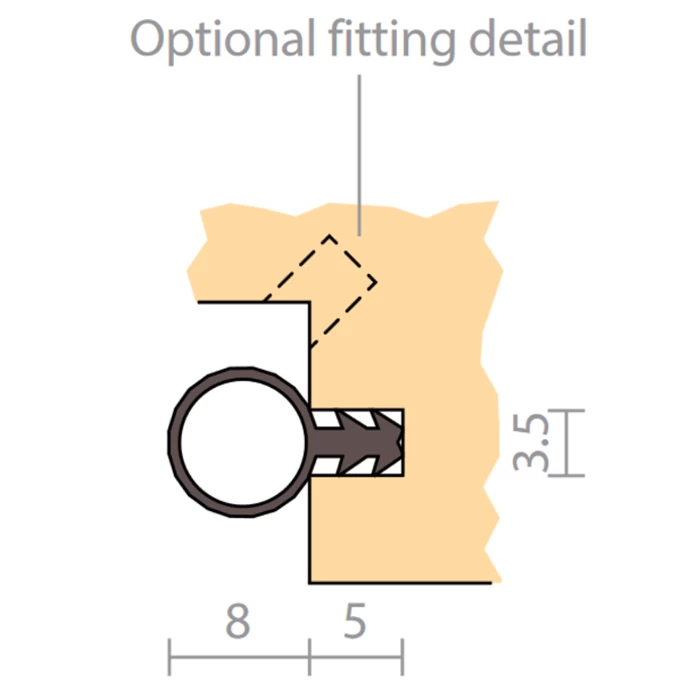

Fixing: Push-in locking fit into a 3.5mm x 5mm deep kerf groove.
Sizes: 100m, 24m.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Weather AUS/NZ: NCC various sections. AS2047, AS4055, AS4420 Pt. 0 to 5 & AS/NZS 1170.
UK/EU: Approved Document L1 & L2. Tests above are similar to BS 5368 & BS 7386.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Roll Length | 24 Meters, 100 Meters |
|---|---|
| Suitable for Door Type | Timber Doors, PVC, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 3mm |
| Min Door Gap | 1mm |
| Gasket Material | Silicon |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| Product Finish or Colour | Black (BLK), Brown (BRN), White (WHT) |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | No |
| Product Material | Silicon |
| Product Thickness | 13mm |
| Product Height | 8mm |
| Brand | Raven |
| MPN | B520 |
| Product Warranty | 2 Years |
