Raven RP5 Door Bottom Sweep Seal 14mm – Clear Anodised Aluminium
Original price was: $21.59.$15.11Current price is: $15.11.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

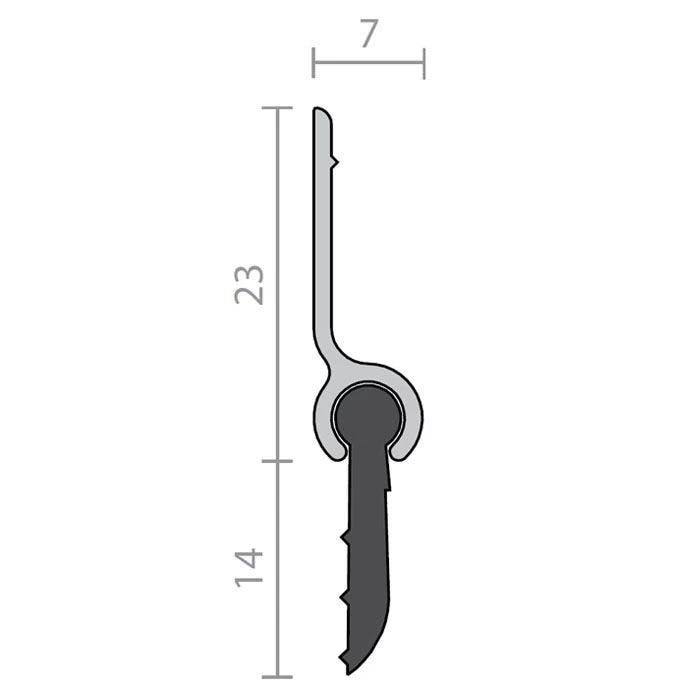

A flexible EPDM weather strip sweep seal that fits to the bottom of doors. It is ideal for screen doors and sash windows to prevent insects from entering up the face of the glass. It is quick and easy to install to the door bottom, being fitted without removing the door. It is also ideal for garage tilt-up doors.
Can be used in conjunction with Raven RP13 and RP82 threshold plates.
Location: Bottom of doors, sash windows or around stiles of tilt up doors.
Min/Max Gap: Up to 15mm (user determined).
Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP303. Black EPDM.
Sizes: Available in stock lengths.
Approvals
Fire Gasket flammability index < 5 when tested to AS1530.2.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 1250mm, 2250mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 15mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Brush / Gasket Length | 14mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<40 |
| Suitable for Smoke Doors | Yes |
| MPN | A5C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 7mm |
| Product Height | 37mm |
| Brand | Raven |
| Product Warranty | 2 Years |
