Raven RP4T Door Bottom Sweep Seal 14mm – Clear Anodised Aluminium
Original price was: $38.74.$27.12Current price is: $27.12.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

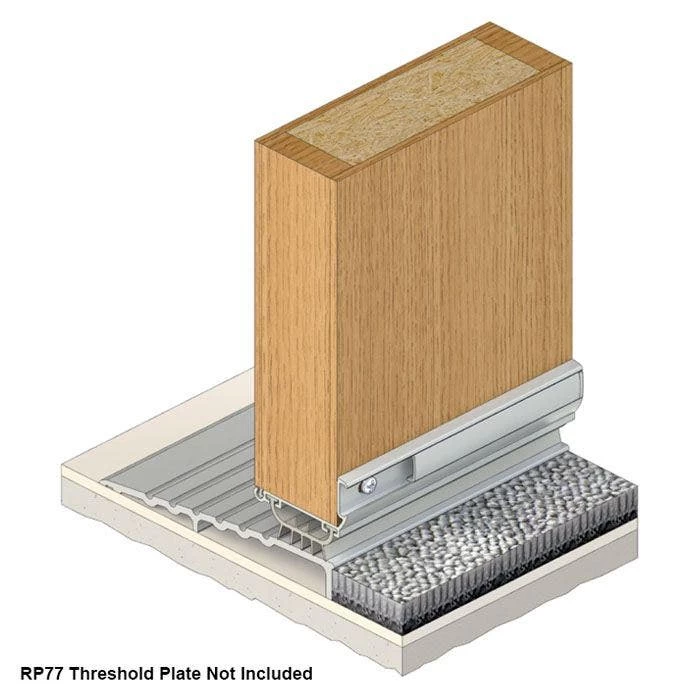

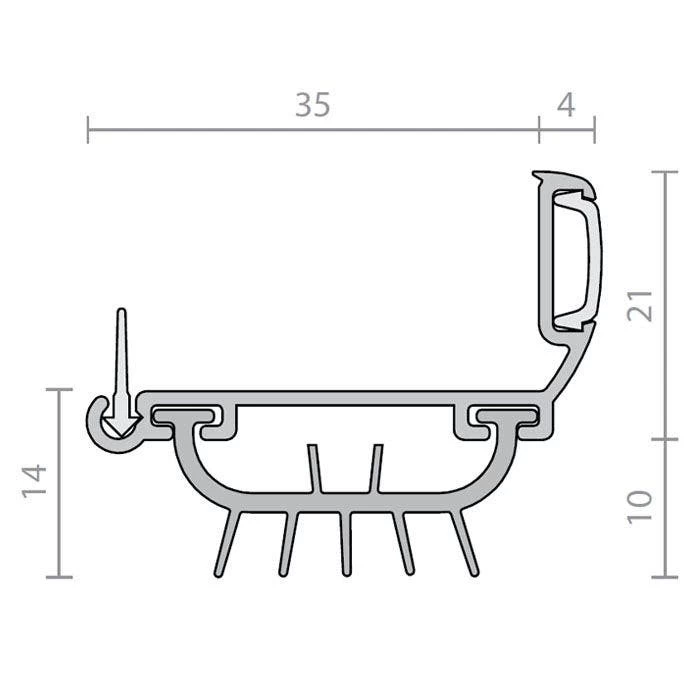

A weather seal, RP4T easily fits to the bottom of a door. It can be used in combination with threshold plates where even greater protection is required.
RP4T is particularly suitable for roll-up doors. Its fixings are concealed and its multi-blade seal defies rain infiltration.
Also available as an intumescent fire and hot smoke seal. Refer to RP114 for this feature.
Location: Roll-up doors. Single and double butt hinged doors or bulkhead applications.
Min/Max Gap: User determined.
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
Seal: RP404 and RP404b. Grey PVC.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Gasket Material | Flexible PVC |
| Gasket / Seal Colour | Grey |
| Brush / Gasket Length | 10mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| MPN | A4TC |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 39mm |
| Product Height | 31mm |
| Brand | Raven |
| Product Warranty | 2 Years |
