Raven RP4b Threshold Plate 11mm – Clear Anodised Aluminium
Original price was: $27.92.$19.54Current price is: $19.54.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

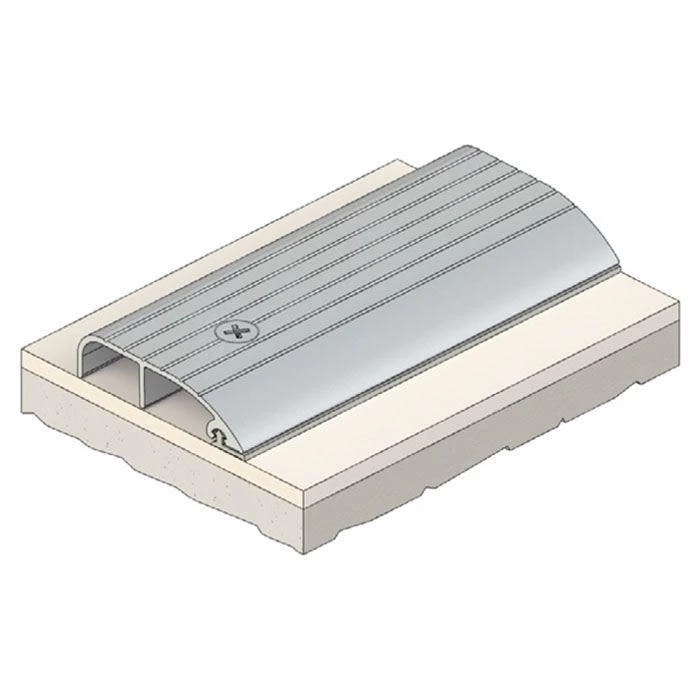

A medium duty threshold plate with integral sill gasket for use in conjunction with Raven door bottom seals.
Location: Door sill.
Finish: Satin clear (silver) or bronze anodised aluminium (25micron).
Fixing: Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-punched and countersunk.
Seal: RP404a. Grey flexible PVC.
Sizes: Available in stock lengths.
Approvals
Access & Mobility NZ: NZ BC Compliance Doc. D1/AS1 1.3.2.
UK/EU: Approved Document M.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30. Fire Approved
Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.
| Product Length | 1000mm, 2000mm, 3000mm |
|---|---|
| MPN | A4C |
| Brand | Raven |

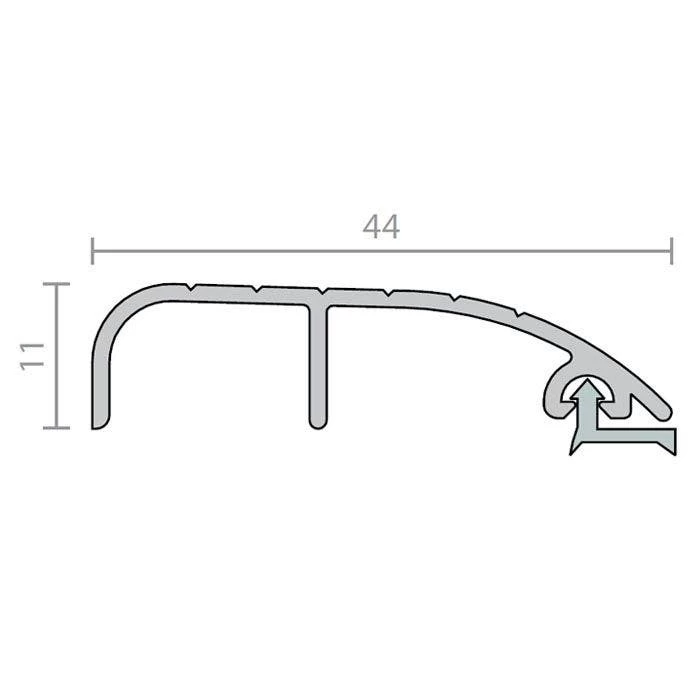

| Product Width | 44mm |
| Product Height | 11mm |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Material | Aluminium |
| Includes Fixing Screws | Yes |
| AS1428.1 Compliant | No |
| Fire Tested | Yes |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Product Warranty | 2 Years |
