Raven RP47Si Perimeter Seal – Clear Anodised Aluminium
Original price was: $94.97.$66.48Current price is: $66.48.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

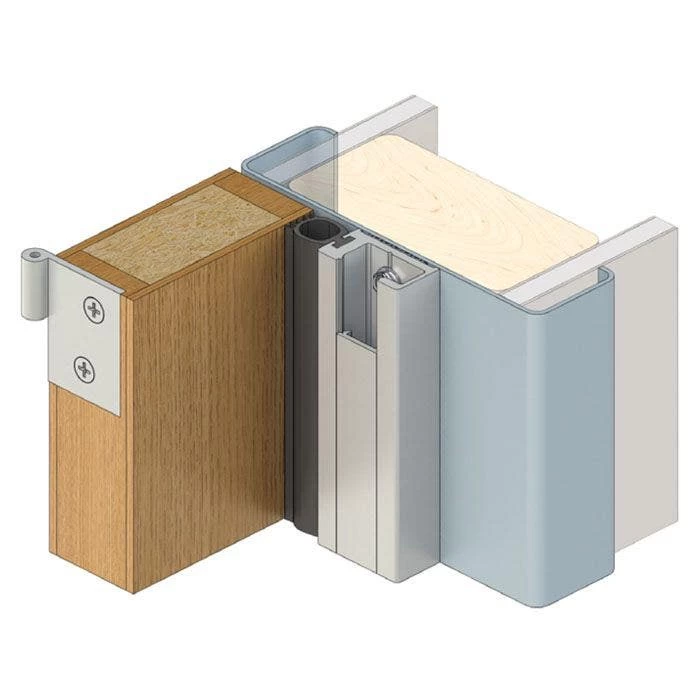

A heavy duty seal designed to replace the conventional door stop. The RP47Si is ideal for medium temperature smoke / fire door applications and has excellent acoustic qualities for heavy traffic areas. With concealed fixings and adjustable fastener slots to achieve an optimum seal, a space for low voltage cable management can be found behind a tamper proof cover strip. RP47Si can be mitred or butt jointed for a neat installation. Can be used on all four sides of the door to form a bulk head seal.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors or bulk head applications.
Min/Max Gap: 0mm to 17mm.
Finish: Satin clear (silver) STANDARD, (black anodised aluminium (15micron) or paint at extra cost SPECIAL ORDER).
Fixing: Concealed screw fix. Zinc plated, Tek self drilling screws (metal) supplied.
Seal: RP347Si. Black silicon rubber (SE).
Sizes: Available in door set sizes or stock lengths.
Approvals
UL Cert. GVYI.R37913.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc C/AS1 6.19.2 & App C6.1.1.
UK/EU: Approved Document B. BE EN 1634-1.
FRL & FRR-/240/30.Fire Approved To be used on door frames with a 25mm stop.
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 2250mm, 2500mm, 2750mm, 3000mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 17mm |
| Min Door Gap | 0mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A47SIC |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

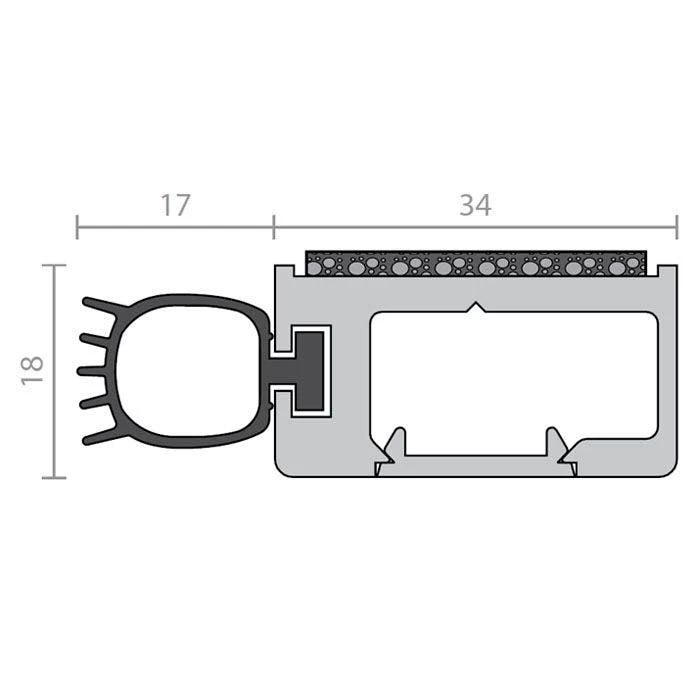

| Product Height | 18mm |
| Product Width | 51mm |
| Brand | Raven |
| Product Warranty | 2 Years |
