Raven RP42 Astragal For Frameless Glass – 3000mm – Clear Polycarbonate
Original price was: $116.81.$81.77Current price is: $81.77.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
Clear polycarbonate astragal and perimeter seals specifically designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form and effective weather and energy seal.
Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates.

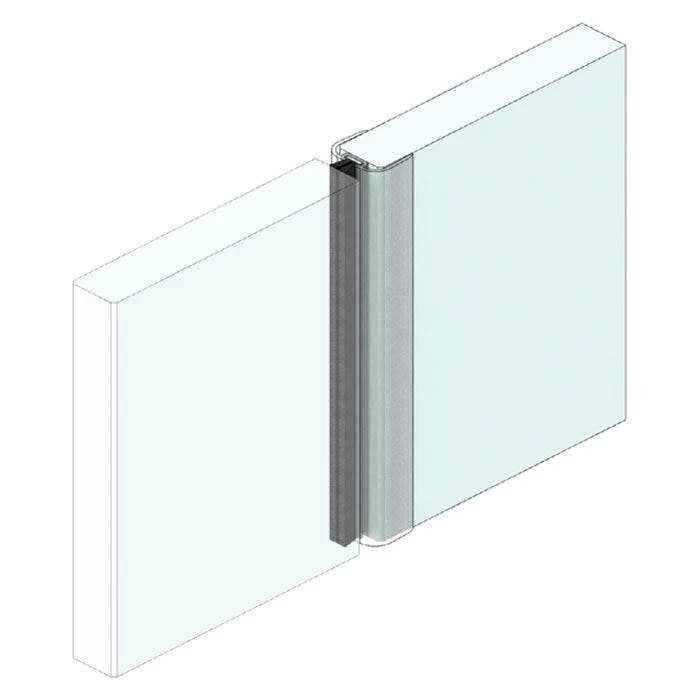

Location: Meeting stiles of 15mm thick frameless glass doors.

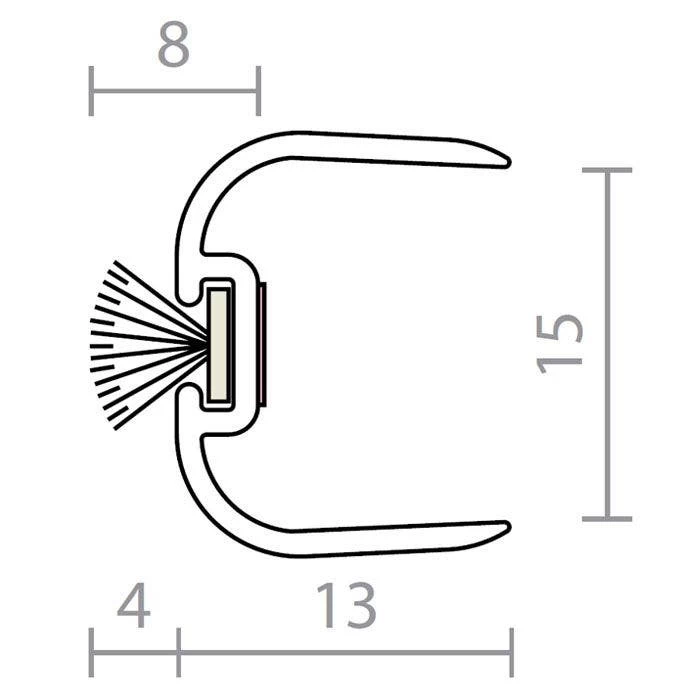

Min/Max Gap: 7mm to 8mm (prior to installation).
Fixing: Self adhesive.
Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Clear high impact UV stabilised polycarbonate body with black polypropylene pile with weather fin.
Sizes: 3000mm.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| MPN | A423000 |
|---|---|
| Suitable for Smoke Doors | Yes |
| Self Adhesive | Yes |
| Max Door Gap | 8mm |
| Gasket Material | Polypropylene Pile |
| Brush / Gasket Length | 4mm |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Door Type | Glass Doors |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Brand | Raven |
| Fire Tested | No |
| Includes Fixing Screws | No |
| Product Material | Polycarbonate |
| Product Finish or Colour | Clear / Transparent (CLR) |
| Product Thickness | 17mm |
| Door Seal Length | 3000mm |
| Product Length | 3000mm |
| Product Height | 15mm |
| Product Warranty | 2 Years |
