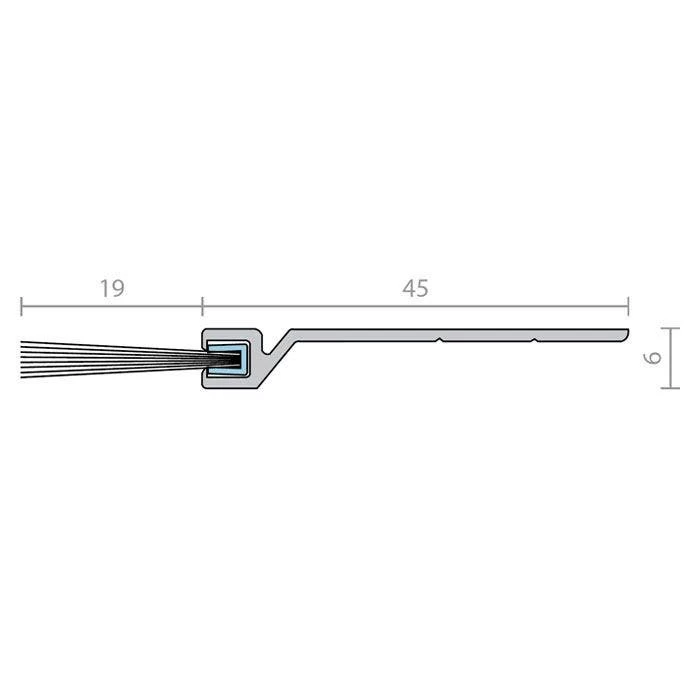

Raven RP41 Brush Seal 19mm With Carrier – 3000mm – Clear Anodised Aluminium
Original price was: $103.20.$72.24Current price is: $72.24.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A nylon brush strip seal with aluminium carrier that is ideal where larger gaps are encountered. The RP41 can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas.
Note: Roll-up doors must have a fairly constant sealing gap when the door operates to avoid excessive flexing of brush filament.
Location: Bottom of single, double, revolving or sliding and double acting pivot doors. Lintels of roll-up garage doors or lintels and stiles of panel-lift garage doors.
Min/Max Gap: 30mm to 50mm (user determined).
Finish: Satin clear (silver) anodised aluminium (15micron).
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: Black fine, dense, UV stabilised nylon filaments.
Sizes: 3000mm.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approvedwhen used on a garage in accordance with AS 3959.  Â
| MPN | A41C3000 |
|---|---|
| Suitable for Smoke Doors | No |
| Self Adhesive | Yes |
| Max Door Gap | 25mm |
| Gasket Material | Nylon Brush |
| Brush / Gasket Length | 25mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Brand | Raven |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 6mm |
| Door Seal Length | 3000mm |
| Product Length | 3000mm |
| Product Height | 64mm |
| Product Warranty | 2 Years |
