Raven RP4 Door Bottom Sweep Seal 25mm – Clear Anodised Aluminium
Original price was: $50.51.$35.36Current price is: $35.36.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required. The RP4 multi-blade seal defies rain infiltration.

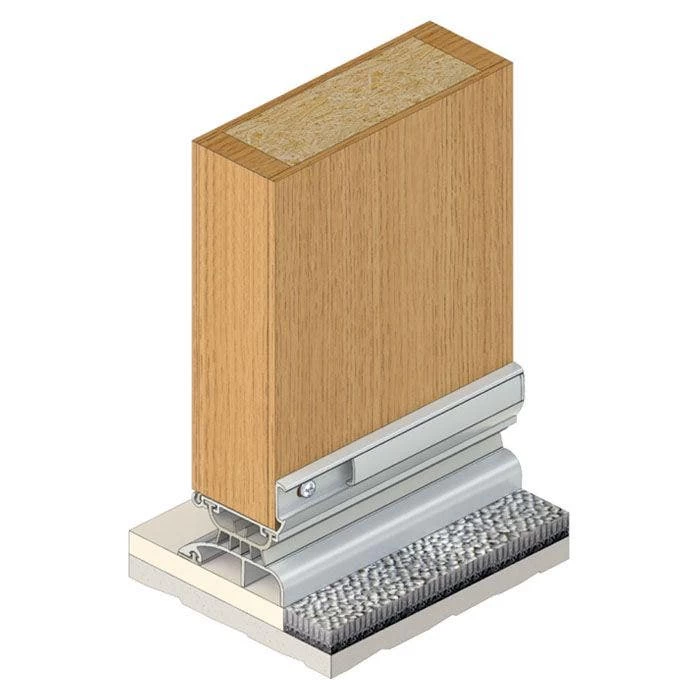

Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm. It is quick and easy to fit to both door and sill.
The sealing section is slotted for adjustment.
Also available as an intumescent fire and hot smoke seal. Refer to RP4FZ.
Location: Bottom of single and double butt hinged doors and sill.
Min/Max Gap: 23mm to 25mm.
Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15micron) with anodised threshold plate (25micron).
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted. Threshold plate fixing holes are pre-punched and countersunk.
Seal: RP404, RP404a and RP404b. Grey PVC.
Sizes: Available in stock lengths.
Approvals
Access & Mobility NZ: NZ BC Compliance Doc D1/AS1 1.3.2. Fire Approved
UK/EU: Approved Document M.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 915mm, 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 25mm |
| Min Door Gap | 23mm |
| Gasket Material | Flexible PVC |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<LOW |
| Suitable for Smoke Doors | Yes |
| MPN | A4C |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 44mm |
| Product Height | 45mm |
| Brand | Raven |
| Product Warranty | 2 Years |
