Raven RP39 Magnetic Astragal Seal – Clear Anodised Aluminium
Original price was: $83.93.$58.75Current price is: $58.75.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

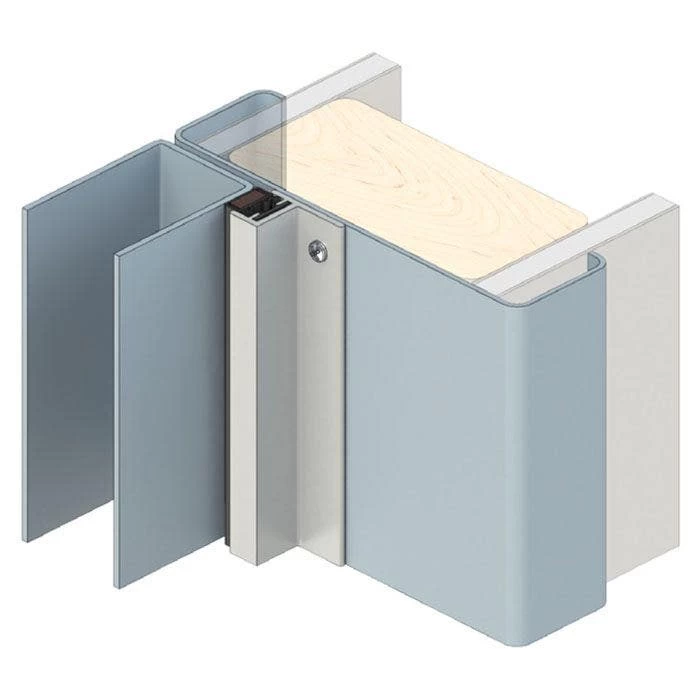

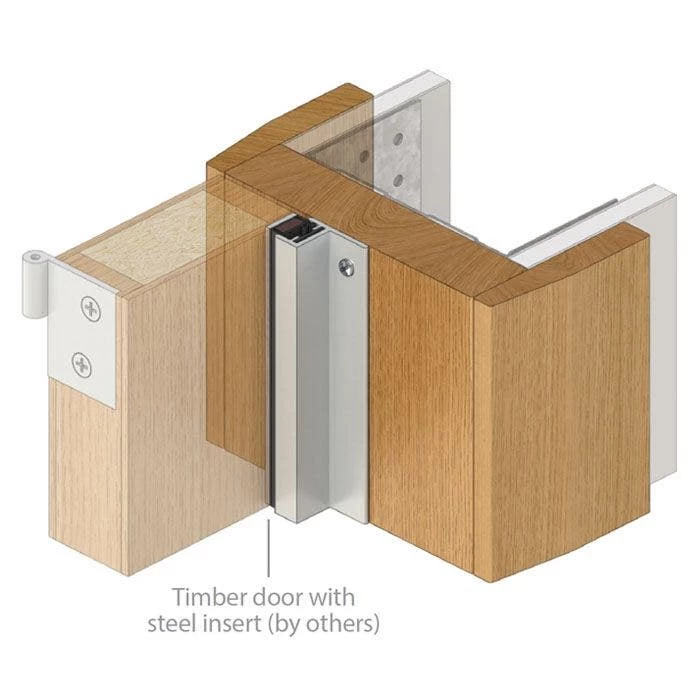

A refrigeration type vinyl magnetic strip in an anodised aluminium housing. RP39 provides a tight seal for steel clad doors and jambs and may be used as a stop. For timber doors, a thin steel strip can be attached to the door face. The magnetic strip has sufficient closing strength that latches may not be required. It can also be used in pairs on meeting stiles of timber doors.
Note: As an astragal seal, RP39 is best suited to infrequent use and door closer hold open applications.

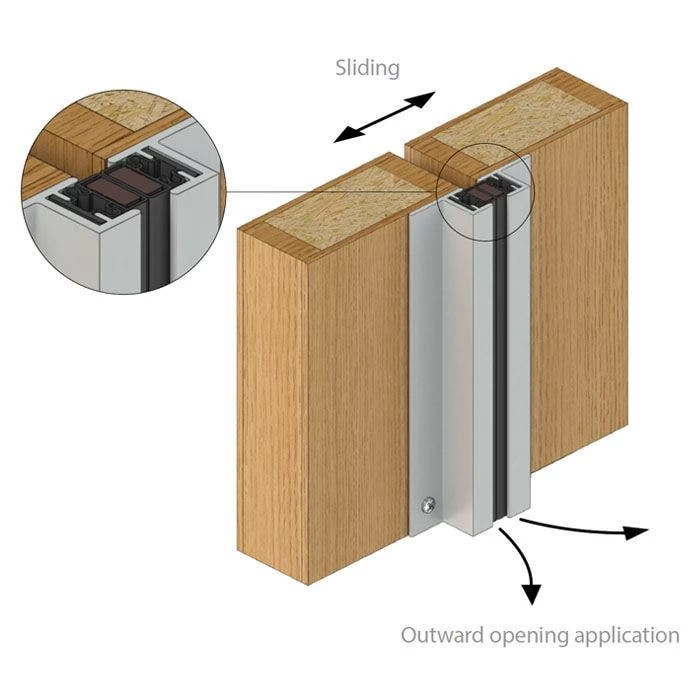

Location: Head, jambs and stiles of single and double butt hinged doors, sliding doors or bulkhead applications.
Min/Max Gap: 4mm to 8mm (meeting stiles).
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are slotted.
Seal: Black PVC.
Sizes: Available in stock lengths.
Approvals
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc C/AS1 6.19.2(a) and App C6.1.1.
UK/EU: Approved Document B. BS 426 Pt. 20 & 22 (similar to BS EN 1634.1).
FRL & FRR-/240/30 and FD240. Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 2250mm, 2500mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 8mm |
| Min Door Gap | 4mm |
| Gasket Material | PVC |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A39C |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

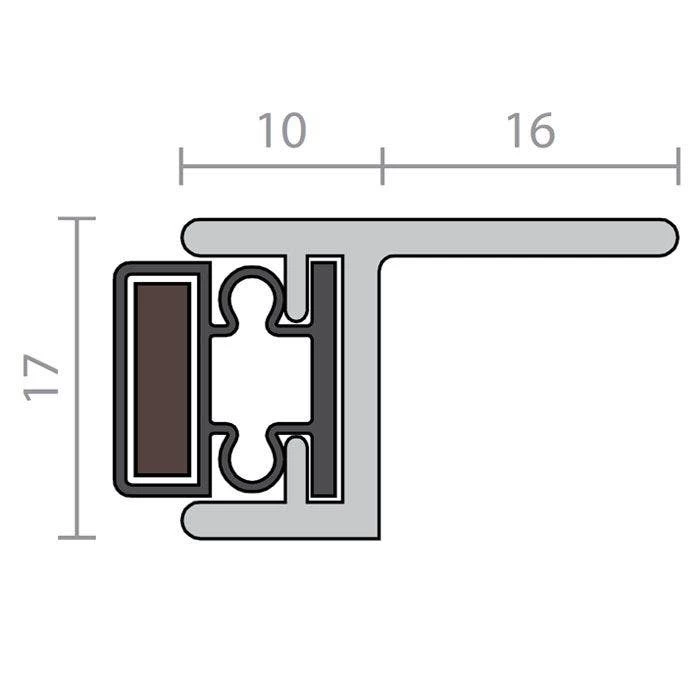

| Product Height | 17mm |
| Product Width | 26mm |
| Brand | Raven |
| Product Warranty | 2 Years |
