Raven RP30 Door Bottom Sweep Seal 8mm – Clear Anodised Aluminium
Original price was: $30.98.$21.69Current price is: $21.69.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

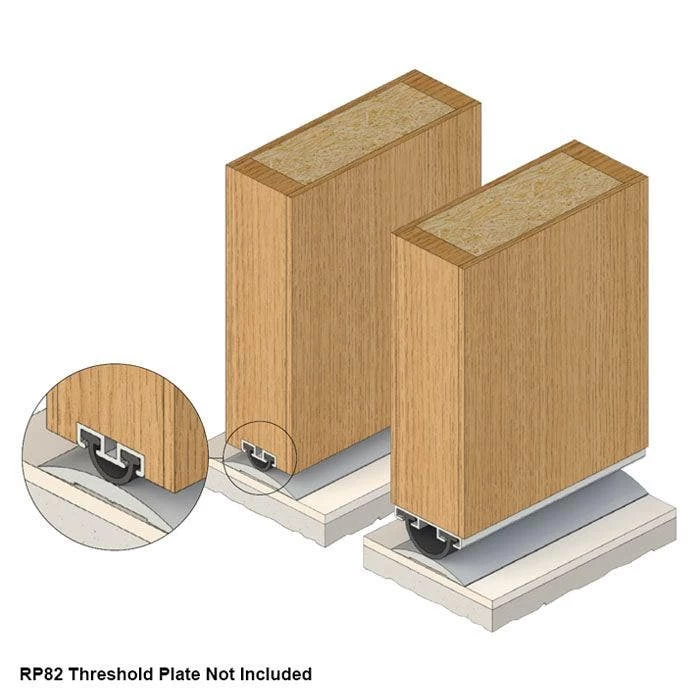

The RP30 is a heavy duty sweep/compression seal. The RP30 is fitted into a concealed, machined groove that should be deep enough to allow packing for adjustment. Forms a weather seal when used with Raven RP13 or RP82 threshold plates.
Location: Bottom of doors, meeting stiles or user determined bumper strip.
Min/Max Gap: 3mm to 8mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP330. Black EPDM.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 2250mm, 2500mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 8mm |
| Min Door Gap | 3mm |
| Gasket Material | EPDM |
| Brush / Gasket Length | 7mm |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| MPN | A30C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

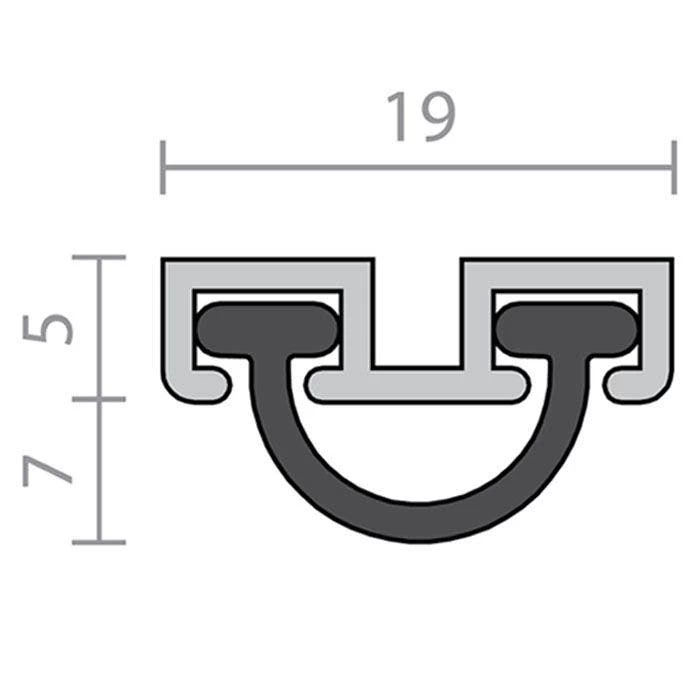

| Product Thickness | 19mm |
| Product Height | 12mm |
| Brand | Raven |
| Product Warranty | 2 Years |
