Raven RP2a Brush Seal 19mm – Clear Anodised Aluminium
Original price was: $34.44.$24.11Current price is: $24.11.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

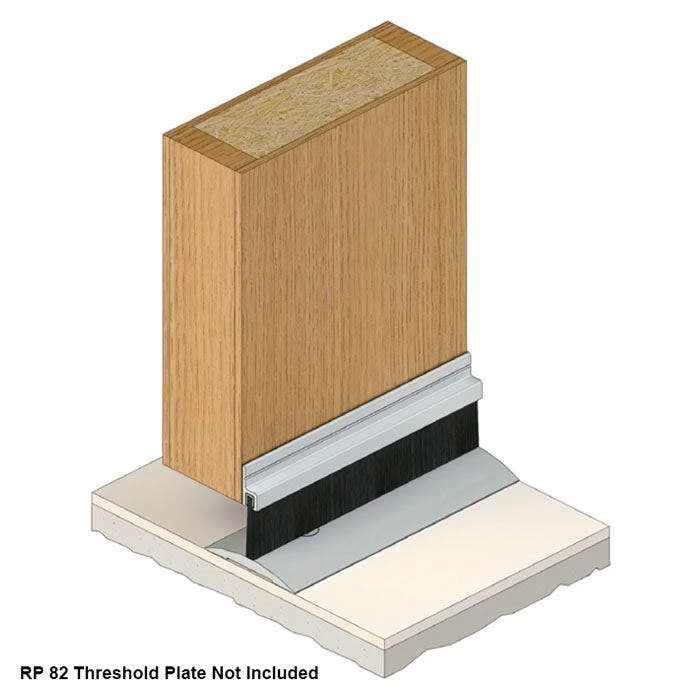

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. It is ideal for sliding or double acting doors.
Can be concealed inside of an aluminium door suite bottom rail by the fabricator.
Used in conjunction with Raven threshold plates.
Location: Bottom of single, double, sliding and double acting doors.
Min/Max Gap: Up to 19mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black fine, dense, UV stabilised nylon filaments.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
Fire Approved when used on a garage in accordance with AS 3959.     Â
| Door Seal Length | 1000mm, 1250mm, 2000mm, 2250mm, 2500mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | Yes |
| Max Door Gap | 19mm |
| Gasket Material | Nylon Brush |
| Brush / Gasket Length | 19mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | No |
| MPN | A2AC |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

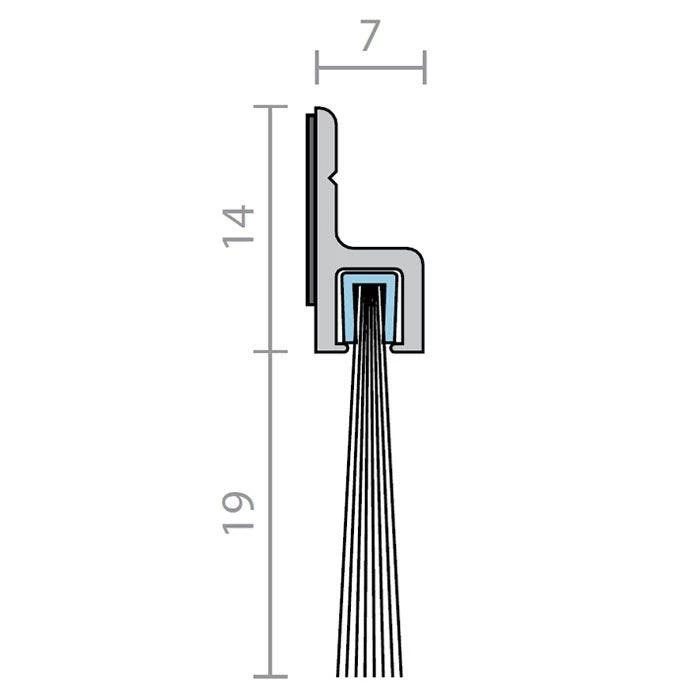

| Product Thickness | 7mm |
| Product Height | 33mm |
| Brand | Raven |
| Product Warranty | 2 Years |
