Raven RP26 Door Bottom Sweep Seal 20mm – Clear Anodised Aluminium
Original price was: $43.79.$30.65Current price is: $30.65.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

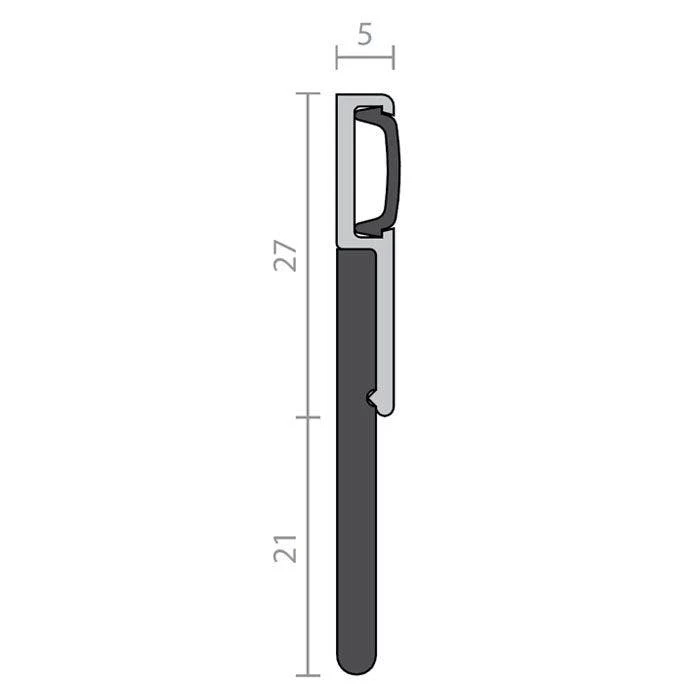

A heavy duty sweep seal for door bottoms of outward opening doors. Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.

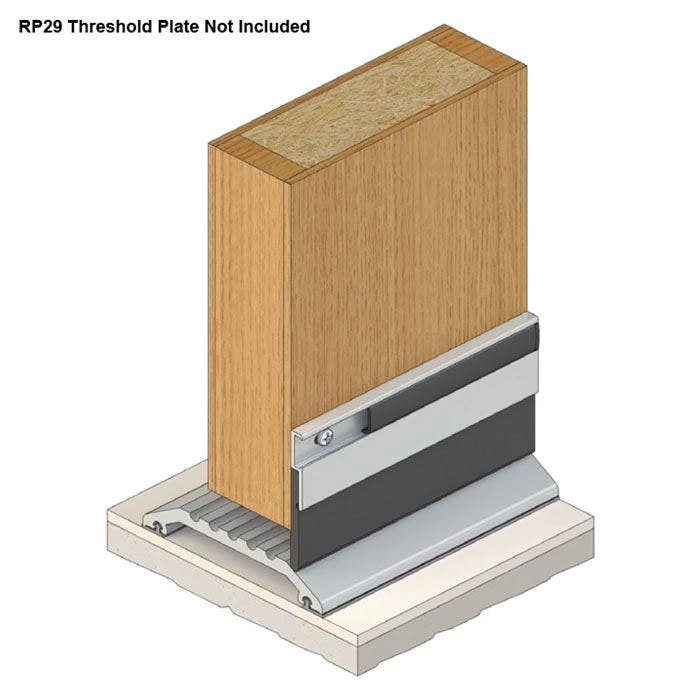

The RP26 is ideal for use in conjunction with Raven threshold plates.
Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as an astragal seal.
Min/Max Gap: 5mm to 20mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
Seal: RP326. Black EPDM.
Sizes: Available in stock lengths.
Approvals
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/120/30 and FD120. Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 1250mm, 1500mm, 2000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 20mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Brush / Gasket Length | 21mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A26C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 5mm |
| Product Height | 48mm |
| Brand | Raven |
| Product Warranty | 2 Years |
