Raven RP24 Perimeter Seal – Clear Anodised Aluminium
Original price was: $265.41.$95.99Current price is: $95.99.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

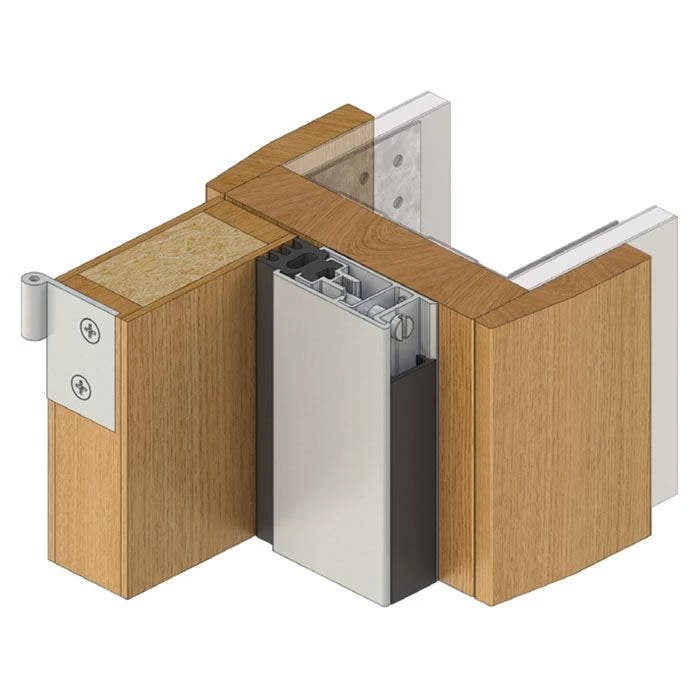

Granted an Australian Design Award, the RP24 is an effective door stop seal for noise, light and smoke. It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors. With tamper proof concealed fixings, the RP24 utilises independently adjustable screws to achieve up to 8mm sealing adjustment for maximum noise control. The closed cell S.E. EPDM seal only requires normal door closing force.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 8mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: RP338. Black closed cell sponge EPDM (SE).
Sizes: Available in door set sizes or stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Tests above are similar to BS EN 1634-1, BS 476 Pt. 20 & 22.
FRL & FRR-/240/30 and FD240. Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 2250mm, 2500mm, 3000mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 8mm |
| Min Door Gap | 0mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A24C |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

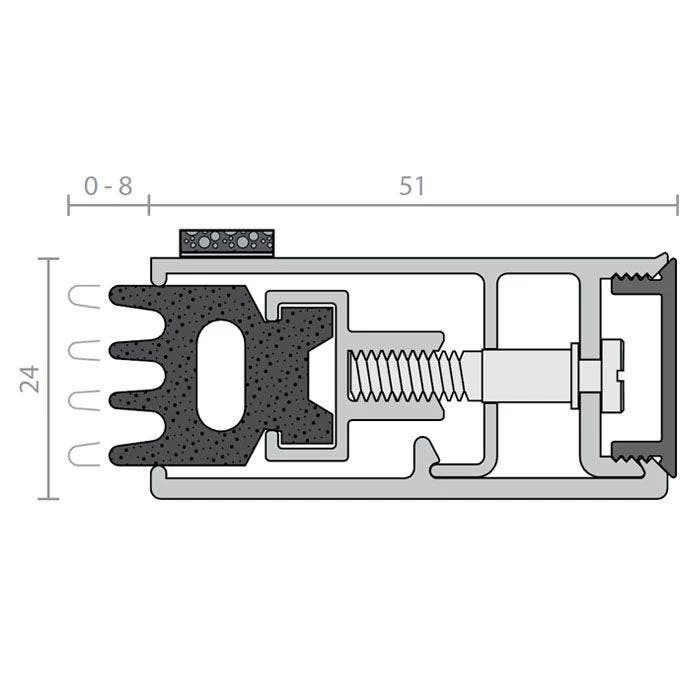

| Product Height | 24mm |
| Product Width | 51mm |
| Brand | Raven |
| Product Warranty | 2 Years |
