Raven RP23 Perimeter Seal – Clear Anodised Aluminium
Original price was: $76.15.$53.31Current price is: $53.31.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A S.E. EPDM compression seal ideal for smoke and weather applications on butt hinged doors. Can be mitred or butt jointed for a neat finish. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install on door stops around the jamb and head and can be fitted without removing the door.
Can be used on all four sides of the door to form a bulk head seal.
Note: A built up sill similar in profile to the stops will be required for bulkhead applications.
Location: Head and jambs of single and double butt hinged doors or bulk head applications.
Min/Max Gap: 0mm to 7mm.
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: RP323. Black EPDM (SE).
Sizes: Available in door set sizes or stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Tests above are similar to BS EN 1634-1, BS 476 Pt. 20 & 22.
FRL & FRR-/240/60 and FD240.Fire Approved
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 2250mm, 3000mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 7mm |
| Min Door Gap | 0mm |
| Gasket Material | EPDM |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A23C |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

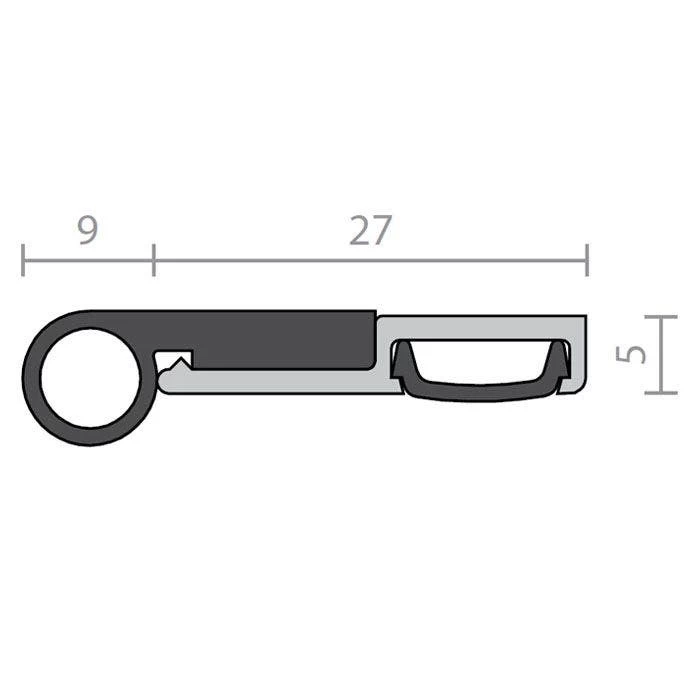

| Product Height | 5mm |
| Product Width | 36mm |
| Brand | Raven |
| Product Warranty | 2 Years |
