Raven RP19 Threshold Plate 13mm – Clear Anodised Aluminium
Original price was: $93.30.$65.31Current price is: $65.31.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

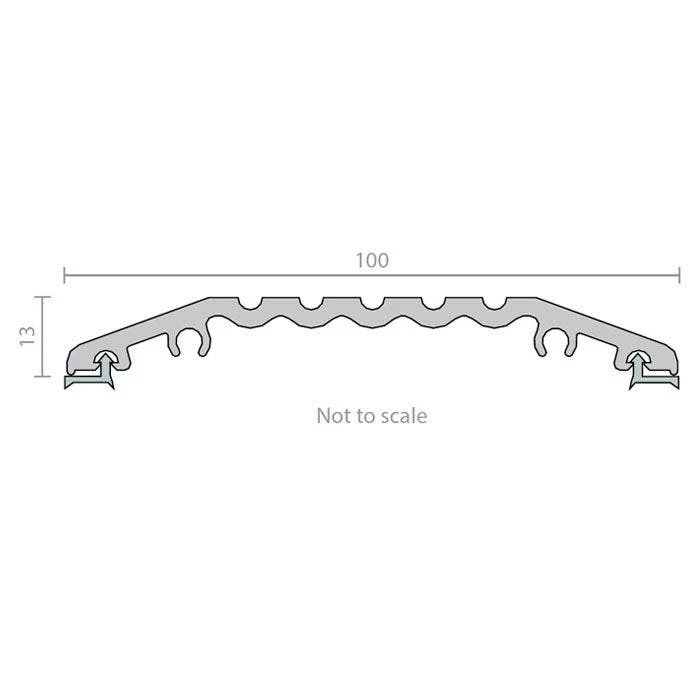

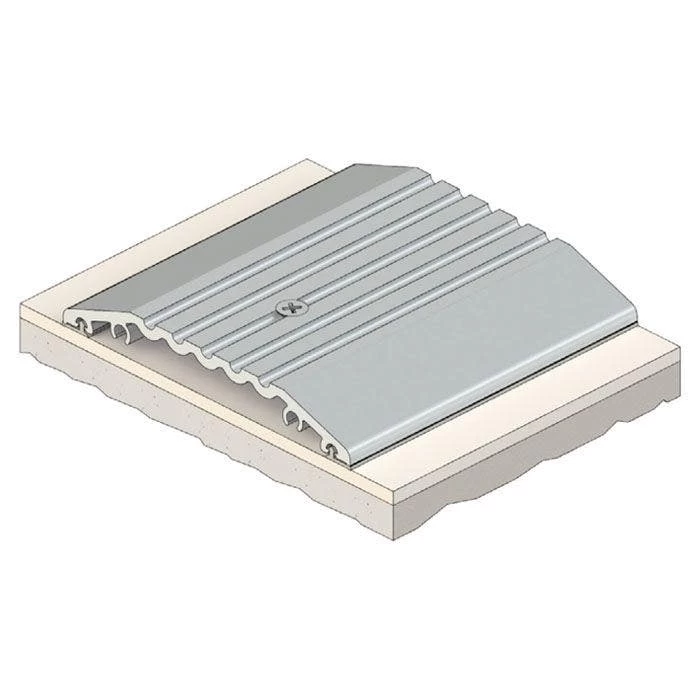

A heavy duty threshold plate with ribbed profile and integral sill gaskets.
Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.
RP19 has been designed to accommodate a concealed screw fix through the door jambs.
Location: Door sill.
Finish: Satin clear (silver) or bronze anodised aluminium (25µm).
Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
Seal: RP404a. Grey flexible PVC.
Sizes: Available in stock lengths.
Approvals
Access & Mobility NZ: NZ BC Compliance Doc. D1/AS1 1.3.2.Â
UK/EU: Approved Document M.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30. Fire Approved
Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.
| Product Length | 1000mm, 1250mm, 2000mm, 3000mm |
|---|---|
| MPN | A19C |
| Brand | Raven |
| Product Width | 100mm |
| Product Height | 13mm |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Material | Aluminium |
| Includes Fixing Screws | Yes |
| AS1428.1 Compliant | No |
| Fire Tested | Yes |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Product Warranty | 2 Years |
