Raven RP17B Door Bottom Sweep Seal
Original price was: $12.76.$8.93Current price is: $8.93.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
Co-extrusion (Adhesive backed).

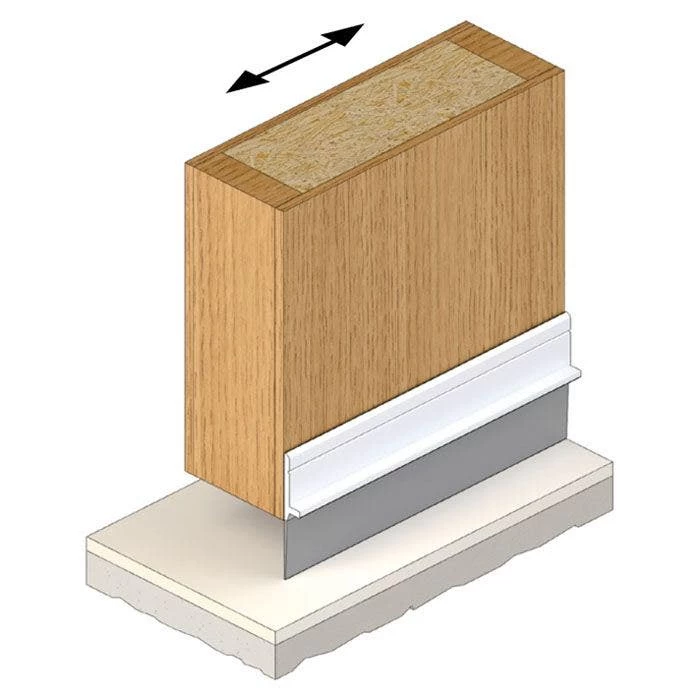

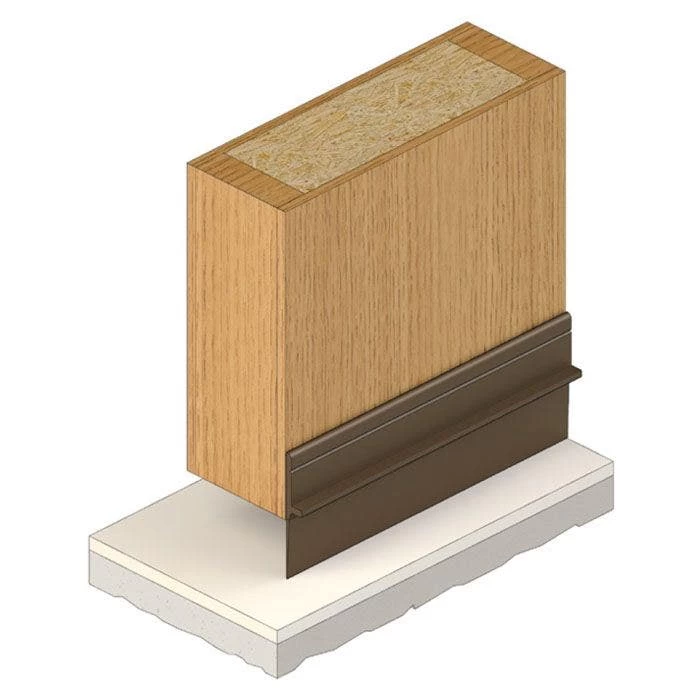

A co-extruded PVC sweep seal that fits to the stiles or bottom of doors. These extremely flexible seals can be quick and easily installed without removing the door. Ideal for sliding and security screen doors.
Can be used in conjunction with Raven RP13 and RP82 threshold plates.
Location: Bottom of or around sliding or outward opening butt hinged doors.
Min/Max Gap: Up to 15mm (user determined).
Fixing: Self adhesive or can be screw fixed.
Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: White and grey or brown rigid and flexible PVC.
Sizes: Available in stock lengths.
Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 915mm, 1000mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | Yes |
| Max Door Gap | 19mm |
| Gasket Material | PVC |
| Gasket / Seal Colour | Grey |
| Brush / Gasket Length | 19mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | R17B |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | No |
| Product Material | PVC |
| Product Thickness | 6mm |
| Product Height | 37mm |
| Brand | Raven |
| Product Warranty | 2 Years |
