Raven RP130Si Perimeter Seal – Clear Anodised Aluminium
Original price was: $67.50.$47.25Current price is: $47.25.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

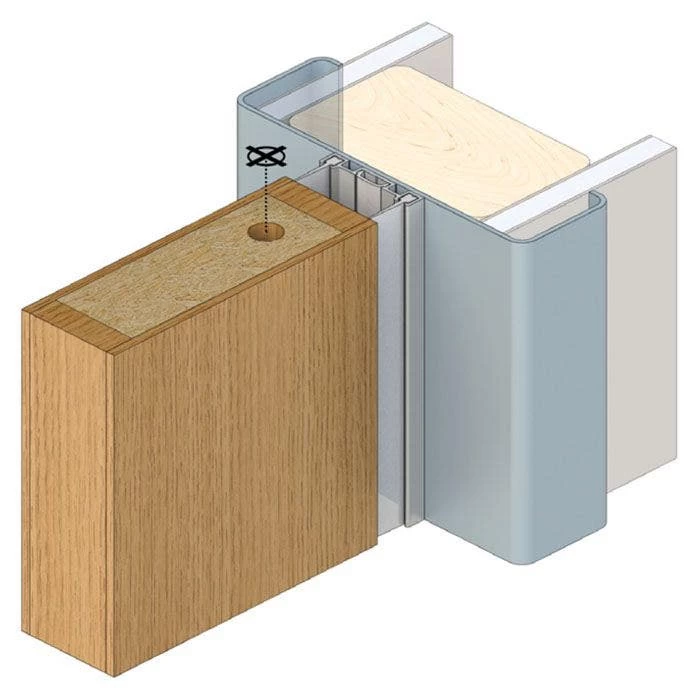

A heavy duty medium temperature smoke seal designed to be fitted to the door head & jamb reveal of pivot door frames. May also be installed to the door stile edges and to one leaf of plain meeting stiles of timber double pivot doors. The aluminium body of the seal can be checked out or drilled to accommodate pivot hardware and latch ware at the meeting stile.
Location: Around frames of single and double acting pivot doors and the stiles of timber doors.
Min/Max Gap: 14mm to 18mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: RP3129Si. Fins: Light grey silicon rubber (SE). Cover strip: Light grey PVC.
Sizes: Available in door set sizes or stock lengths.
Approvals
Fire Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
Registered Design.
| Door Seal Length | 2100mm, 2750mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 18mm |
| Min Door Gap | 14mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<40 |
| Suitable for Smoke Doors | Yes |
| MPN | A130SIC |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

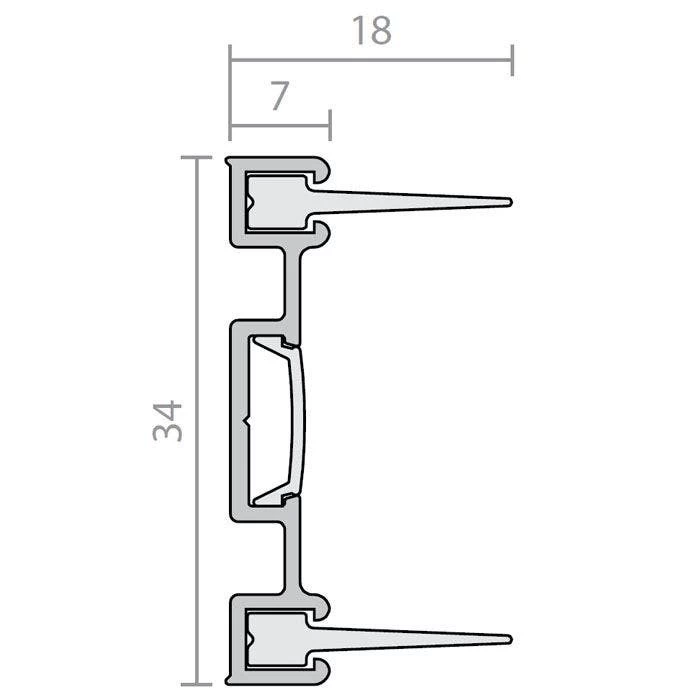

| Product Height | 34mm |
| Product Width | 18mm |
| Brand | Raven |
| Product Warranty | 2 Years |
