Raven RP129F Door Bottom Sweep Seal 18mm – Clear Anodised Aluminium
Original price was: $60.46.$42.32Current price is: $42.32.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
A heavy duty medium temperature smoke door bottom seal. The seal is achieved by a pair of nylon brush strips with a medium temperature smoke barrier. The seal can be checked out or drilled to accommodate the pivot, thereby providing a continuous seal. Can be used in conjunction with RP130Si, other Raven perimeter seals and threshold plates.

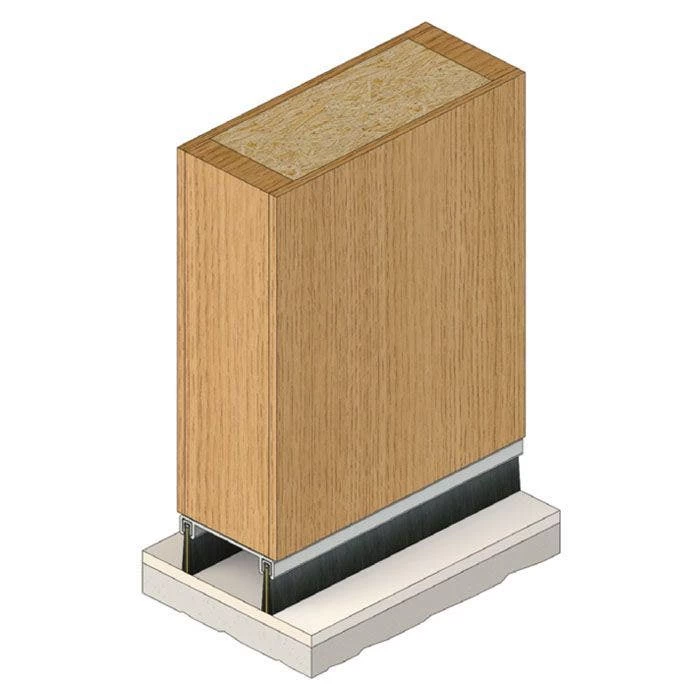

Location: Bottom of double butt hinged or centre pivot double acting doors.
Min/Max Gap: 15mm to 18mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP52F. Black fine and dense nylon filaments, UV stabilised medium temperature smoke barrier fin and galvanised steel spine.
Sizes: Available in stock lengths.
Approvals
Smoke AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2(b). AS1530.7 & BS EN 1634-3 (similar to BS 476 section 31.1). Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
Durability Tested to over 1,000,000 operating cycles without failure.
Patented, Registered Design.
| Door Seal Length | 1250mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 18mm |
| Gasket Material | Nylon Brush |
| Brush / Gasket Length | 11mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL <29 |
| Suitable for Smoke Doors | Yes |
| MPN | A129F |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Galvanised Steel |
| Product Finish or Colour | Clear Anodised (CA) |

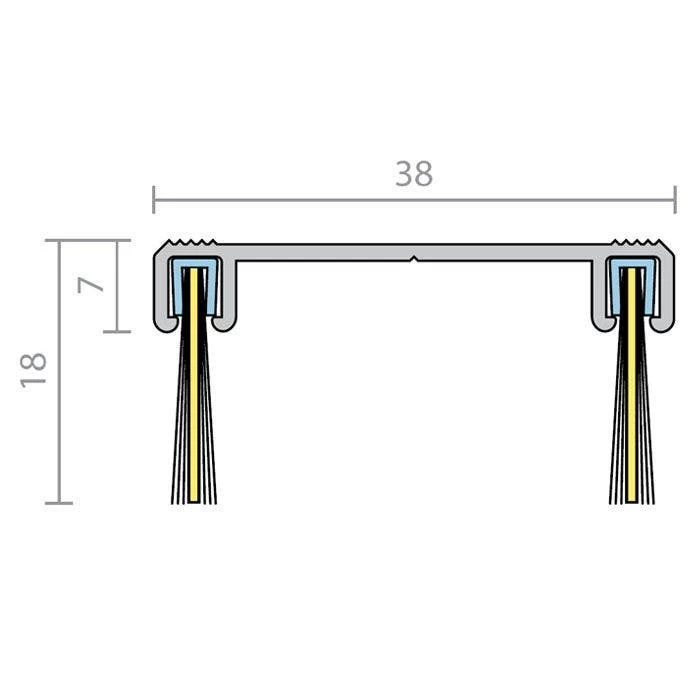

| Product Thickness | 38mm |
| Product Height | 18mm |
| Brand | Raven |
| Product Warranty | 2 Years |
