Raven RP126Si Automatic Door Bottom Seal – Clear Anodised Aluminium
Original price was: $98.12.$68.68Current price is: $68.68.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications. RP126Si is operated automatically by pressure on the door jamb or stop by its adjustable strike.

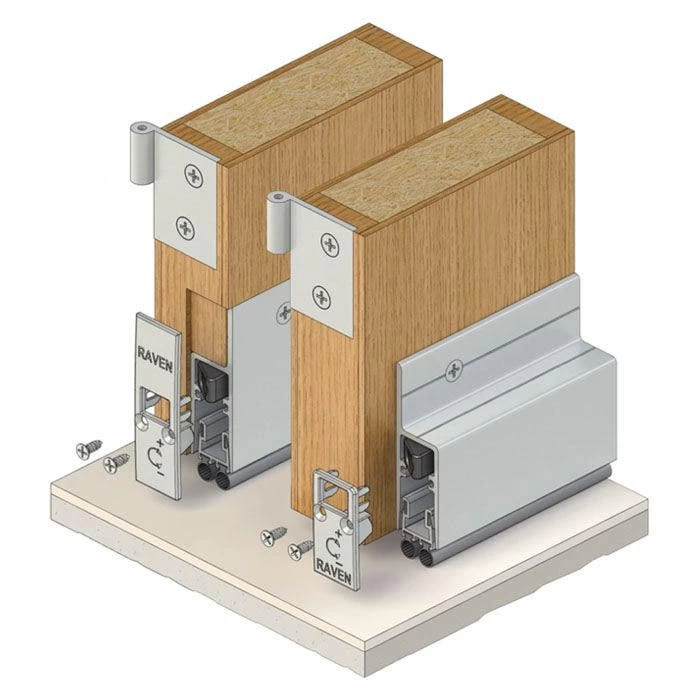

Location: Face mounted or semi-morticed into the bottom of single and double solid core butt hinged doors. Minimum door thickness of 35mm recommended for semi-morticed installations with plain meeting stiles. Minimum door thickness of 40mm recommended for semi-morticed installation with rebated meeting stiles. RP126Si can also be face mounted to the bottom of metal doors.
Min/Max Gap: 3mm to 14mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal: RP3126Si. Black Silicon Rubber (SE).
Sizes: 1500mm, 1220mm, 1070mm, 920mm, 820mm, 600mm to 305mm(min). Seals cut back to exact size.
Approvals
UL Cert. GVYI.R37913
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS EN 1634-1.
FRL & FRR-/240/30. Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2.
Energy NCC Pt. 3.12.3.3 & J3.4.
Durability Tested to over 1,000,000 operating cycles without failure.
Patented, Registered Design.
| Door Seal Length | 600mm, 820mm, 920mm, 1070mm, 1220mm, 1500mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Max Door Gap | 14mm |
| Min Door Gap | 3mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix / Semi-Rebated |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | Fire Zone |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| MPN | A126SIC |
| Suitable for Smoke Doors | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 20mm |
| Product Height | 65mm |
| Brand | Raven |
| Product Warranty | 2 Years |
