Raven RP124 Perimeter Seal – Black
Original price was: $71.43.$50.00Current price is: $50.00.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

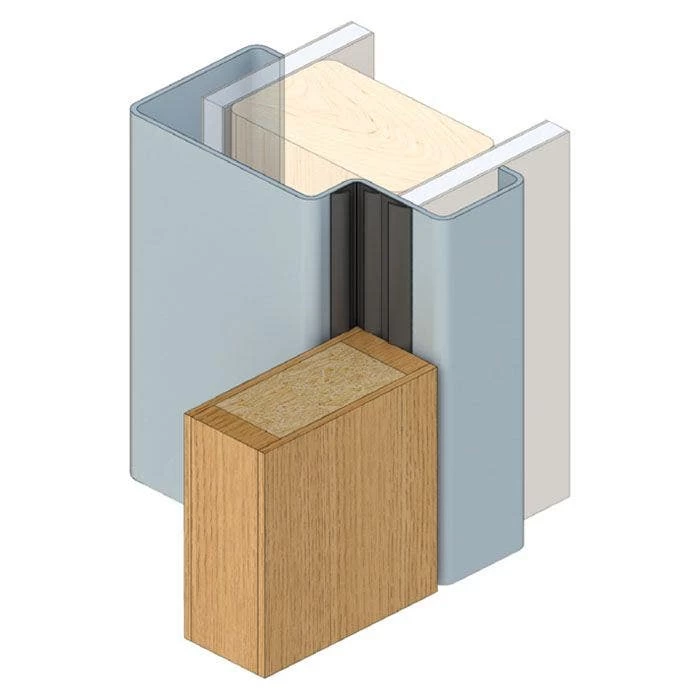

The RP124 is the Delta Seal Plus, a rigid and flexible co-polymer acoustic smoke seal with multiple fins and quick and easy self adhesive installation. The RP124 is located in the protected corners of rebated timber or steel frame doors and is suitable for new and retrofit applications.
Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.
Location: Around rebated frames of single and double butt hinged doors.
Min/Max Gap: 3mm to 5.5mm.
Fixing: Aggressive self adhesive backing tape on both sides of the carrier.
Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black co-extruded rigid and flexible flame retardant PVC.
Sizes: Available in door set sizes.
Approvals
UL Cert. GVYI.R37913.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/120/30 and FD120. Fire Approved
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2.
Energy NCC Pt. 3.12.3.3 & J3.4.
Registered Design.
| Door Seal Length | 3000mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | Yes |
| Max Door Gap | 6mm |
| Min Door Gap | 3mm |
| Gasket Material | Flexible PVC |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A123 |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | No |
| Product Material | PVC |
| Product Finish or Colour | Black (BLK) |

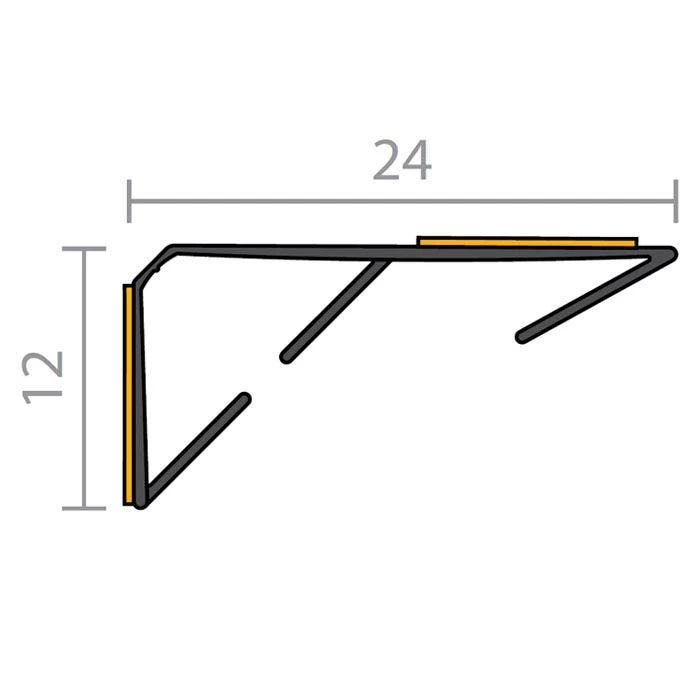

| Product Height | 12mm |
| Product Width | 24mm |
| Brand | Raven |
| Product Warranty | 2 Years |
