Raven RP123 Door Bottom Sweep Seal 20mm – Clear Anodised Aluminium
Original price was: $40.71.$28.50Current price is: $28.50.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

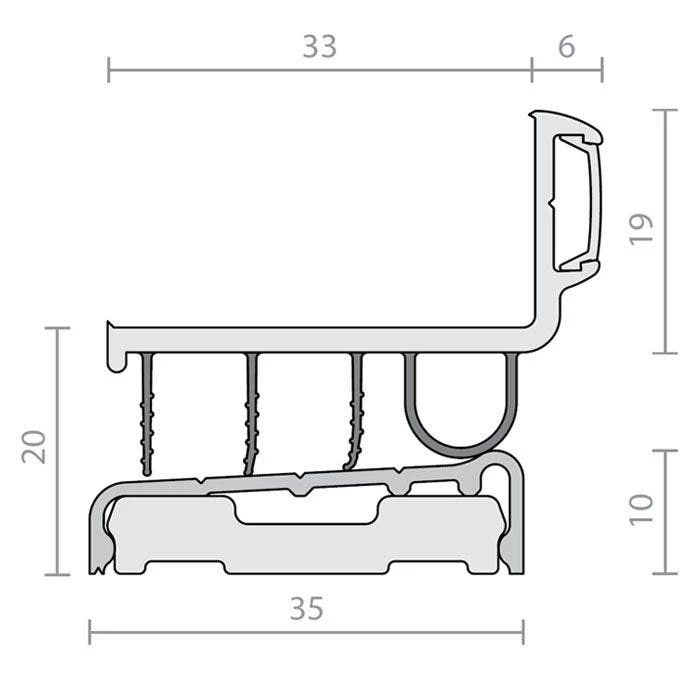

RP123 is a co-polymer, door bottom weather seal with a concealed fix aluminium threshold plate. RP123 easily fits to the bottom of a door where maximum weather protection is required.
Quick and easy to install to both door and sill. RP123 is fitted to the square cut bottom of a door provided there is a gap of 19 – 20mm for a flat sill or 12 – 13mm for a rebated sill prior to installation.

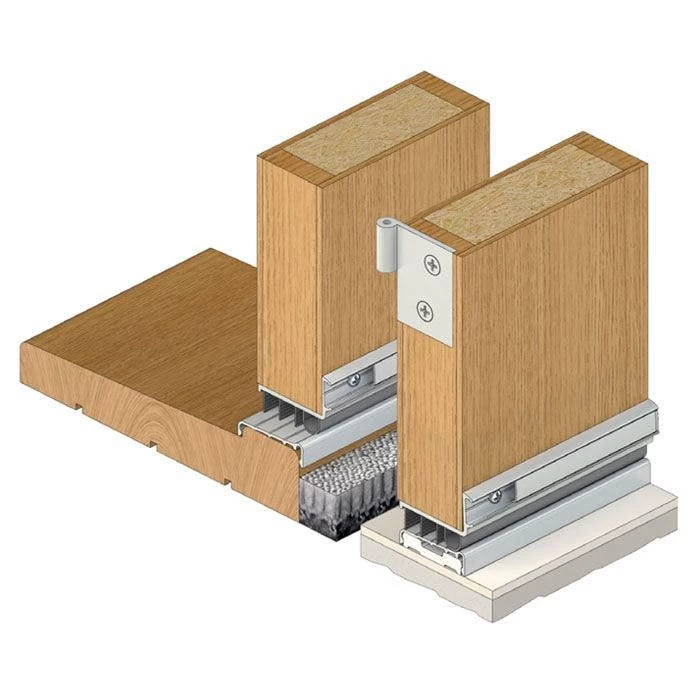

Location: Bottom of single and double butt hinged doors with rebated or flat sills.
Min/Max Gap: Flat sill: 19mm to 20mm. Rebated sill: 12mm to 13mm.
Finish: Satin clear (silver) or bronze anodised aluminium (25micron) threshold plate.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-punched. Threshold plate can be screwed or fastened with builders adhesive for a concealed fix.
Seal: Light grey rigid PVC body with dark grey flexible PVC seal or, brown rigid PVC body with black flexible PVC seal.
Sizes: 1750mm, 926mm, 826mm.
Approvals
Access & Mobility NZ: NZ BC Compliance Doc. D1/AS1 1.3.2.
Energy NCC Pt. 3.12.3.3 & J3.4.
Durability Tested to over 500,000 operating cycles without failure.
Patented, Registered Design.
| Door Seal Length | 826mm, 926mm, 1750mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 20mm |
| Gasket Material | PVC |
| Gasket / Seal Colour | Grey |
| Brush / Gasket Length | 10mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| Brand | Raven |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium / PVC |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 39mm |
| Product Height | 39mm |
| Product Warranty | 2 Years |
