Raven RP118Si Perimeter Seal – Clear Anodised Aluminium
Original price was: $39.31.$27.52Current price is: $27.52.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

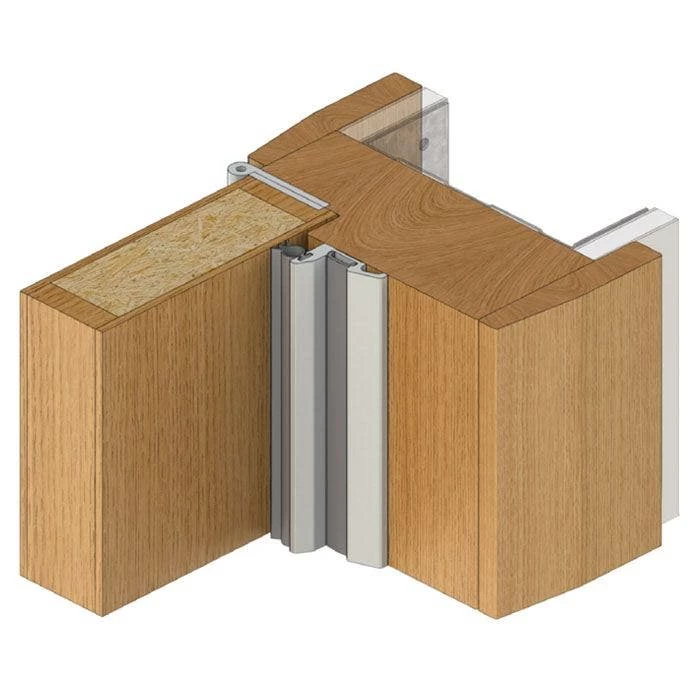

A smoke, weather and acoustic door frame seal suitable for outward opening butt hinged doors. Designed to accommodate a latch engagement for suitable panic exit devices at the head of the door. The RP118Si used in conjunction with the RP117Si threshold plate seal provides a bulkhead seal around the door with a top and bottom latch engagement.
Quick and easy to install with a mitre joint without removing the door, the RP118Si is slotted for adjustment and has concealed fixings.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 10mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: RP308Si. Grey silicon rubber (SE).
Sizes: Available in stock lengths.
Approvals
UL Cert. GVYI.R37913.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Smoke AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B.
Gasket flammability index 1 when tested to AS1530.2.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 2250mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 10mm |
| Min Door Gap | 0mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<40 |
| Suitable for Smoke Doors | Yes |
| MPN | A118SIC |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Height | 15mm |
| Product Width | 37mm |
| Brand | Raven |
| Product Warranty | 2 Years |
