Raven RP113 Perimeter Seal – Tas Oak
Original price was: $117.22.$82.05Current price is: $82.05.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

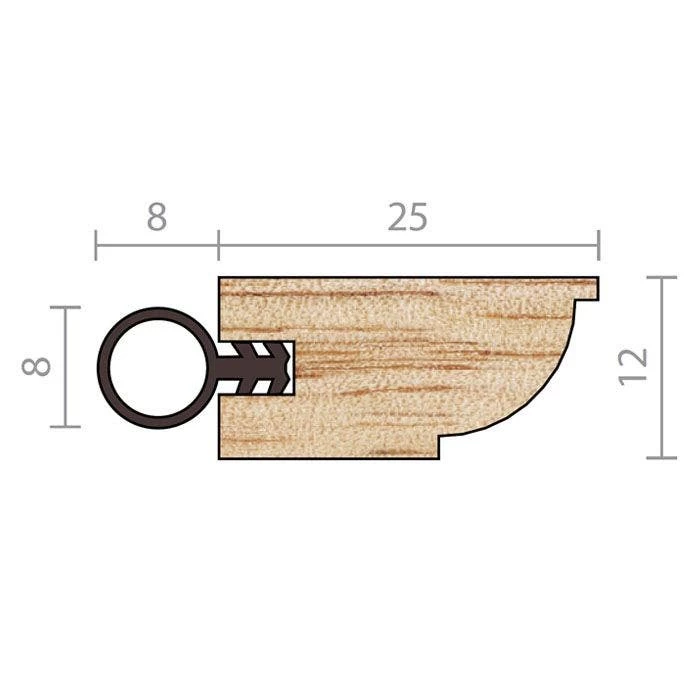

A timber door stop frame seal suitable for plain or rebated frames.
Can be used in conjunction with Raven door bottom seals and astragals.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.

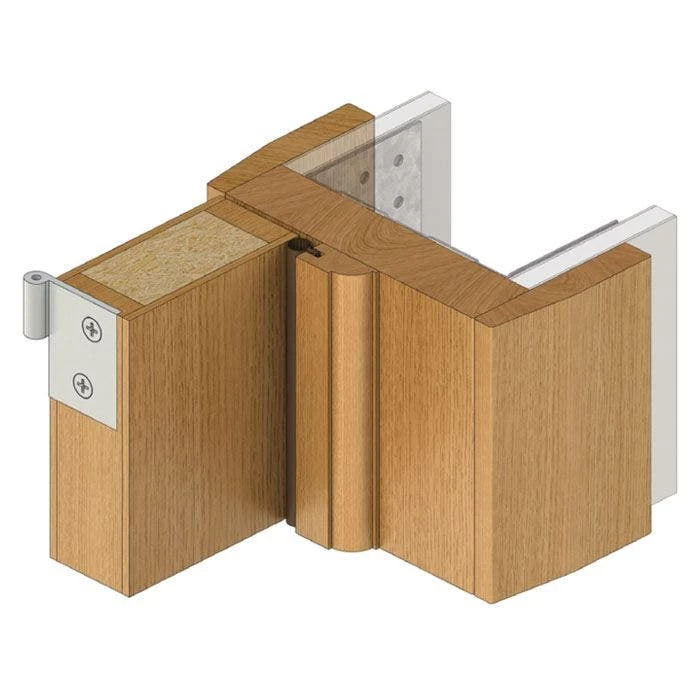

Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 7mm. (Compression 1mm to 3mm).
Finish: Genuine plantation Tasmanian oak.
Fixing: Nail fix. Zinc plated nails supplied.
Seal: RP320. Brown silicon rubber.
Sizes: Available in single and double door set sizes.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Smoke AUS/NZ: NCC Spec. C3.4 for smoke doors. NZ BC Compliance Doc. C/AS1 6.19.2(b).
UK/EU: Approved Document B.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm) |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 7mm |
| Min Door Gap | 0mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Brown |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<29 |
| Suitable for Smoke Doors | Yes |
| MPN | RP113 |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Timber |
| Product Finish or Colour | Brown (BRN) |
| Product Height | 12mm |
| Product Width | 33mm |
| Brand | Raven |
| Product Warranty | 2 Years |
