Raven RP112 Threshold Plate 8mm – Clear Anodised Aluminium
Original price was: $30.29.$21.20Current price is: $21.20.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

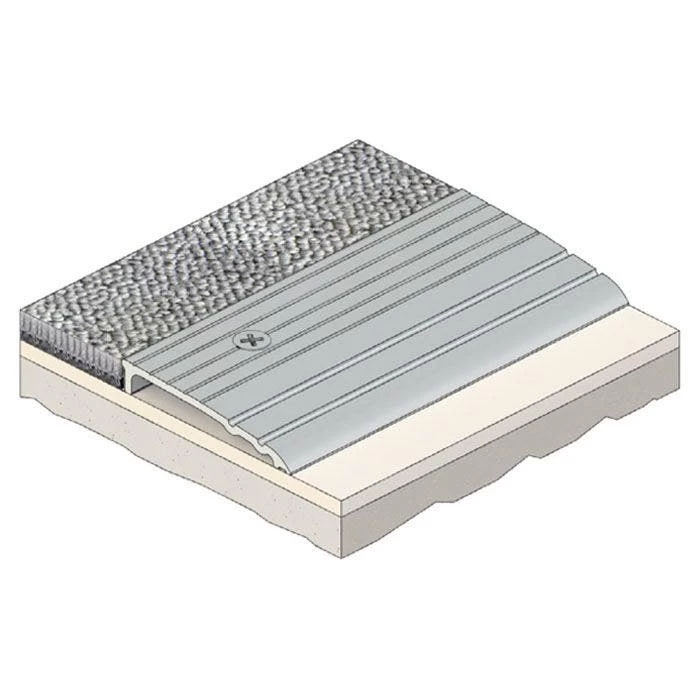

A medium duty threshold plate which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).
Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.
Can also be used to provide a ramped frame for internal door mats and tiles.
Location: Door sill.
Finish: Satin clear (silver) or bronze anodised aluminium (25micron).
Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
Sizes: Available in stock lengths.
Approvals
UL Cert. GVYI.R37913
Access & Mobility AUS/NZ: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
UK/EU: Approved Document M.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240. Fire Approved
Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.
| Product Length | 1000mm, 2000mm, 3000mm |
|---|---|
| MPN | A112C |
| Brand | Raven |

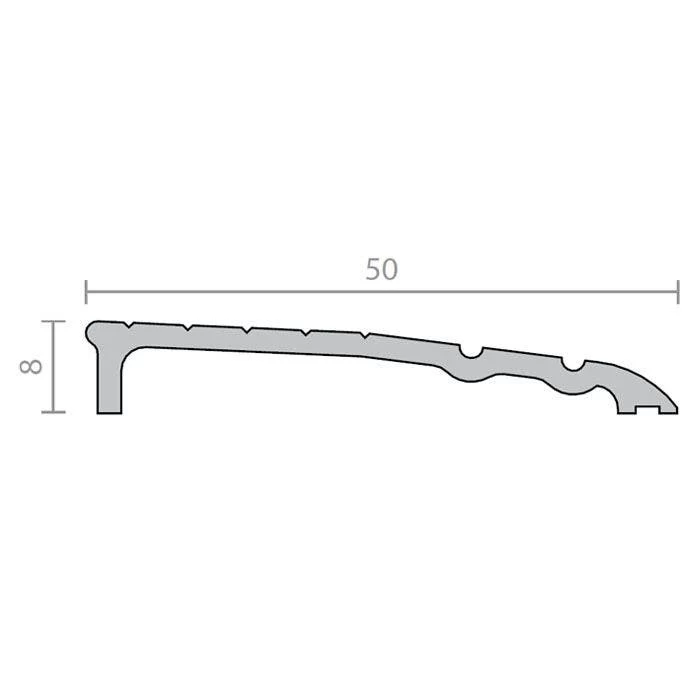

| Product Width | 50mm |
| Product Height | 8mm |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Material | Aluminium |
| Includes Fixing Screws | Yes |
| AS1428.1 Compliant | Yes |
| Fire Tested | Yes |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| Product Warranty | 2 Years |
