Raven RP10 Perimeter Seal – Clear Anodised Aluminium
Original price was: $38.63.$27.04Current price is: $27.04.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

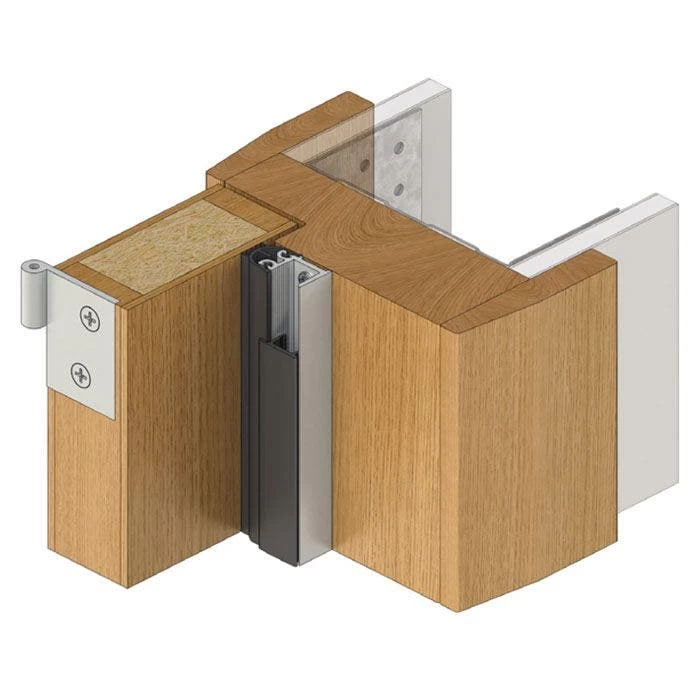

An effective acoustic door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.
RP10 can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit. RP10 has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 10mm
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP410. Black flexible PVC. Black rigid flexible PVC (SE) cover strip.
Sizes: Available in door set sizes or stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240.Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.
| Door Seal Length | 1000mm, 1250mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 10mm |
| Min Door Gap | 0mm |
| Gasket Material | Flexible PVC |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Bush Fire Attack Level | BAL<FZ |
| Suitable for Smoke Doors | Yes |
| MPN | A10C |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

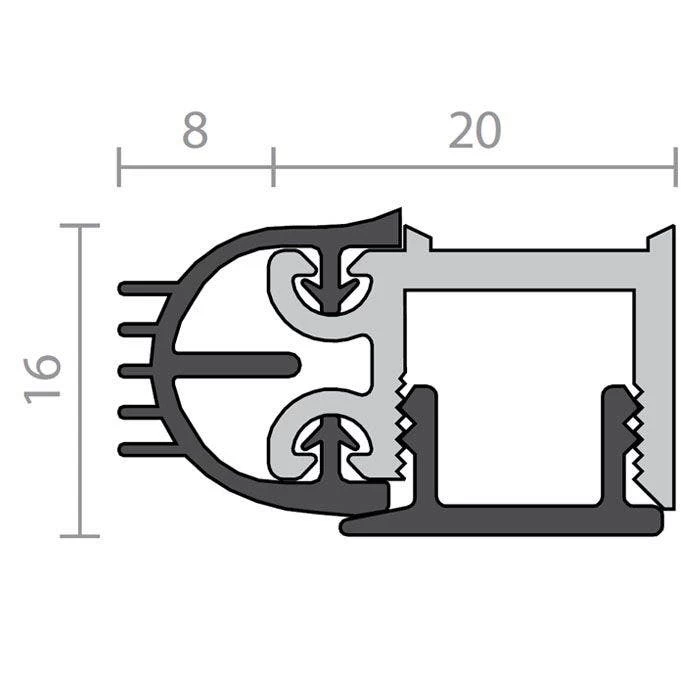

| Product Height | 16mm |
| Product Width | 28mm |
| Brand | Raven |
| Product Warranty | 2 Years |
