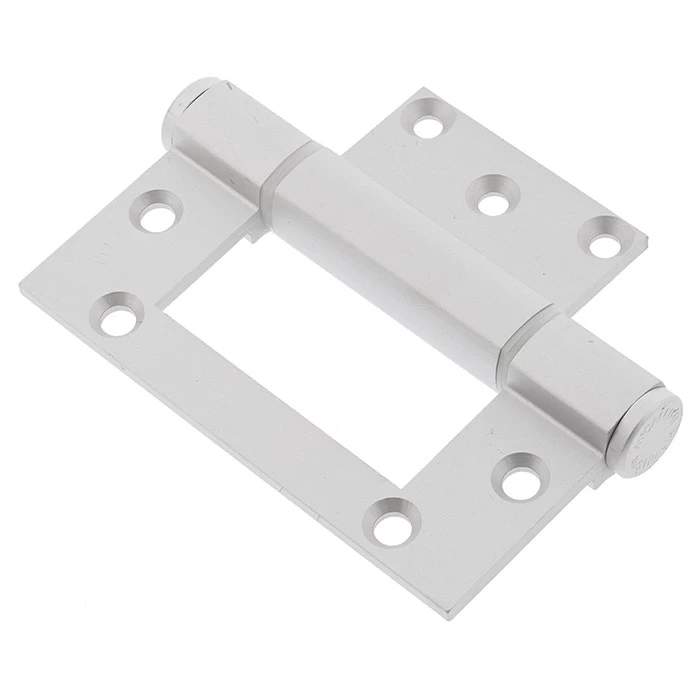

McCallum A174 Aluminium Heavy Duty Interfold Hinge – Satin Natural Anodised – 100x35x3.5mm

McCallum A174 100x40x3mm HD Fast Fix Hinge Satin Natural Anodized

• Suits 34mm minimum thick doors;
• Suits high usage aluminium entrance doors with centre or front edge glazing.
• Maximum door weight – 40kgs
• Material – high strength T.6 minimum tensile 254 mpa
• 6mm 304 stainless steel pin with machined chamfer on both ends
• Flanged nylon bushes
• Pressed-in interference fit round aluminium encaps
• Squareline heavy duty knuckle
• Pre-drilling of the holes in the timber may be required.
• Suitable for some timber door applications.
• Please note; pop rivets are not recommended
• Please note; this hinge is designed with a 1mm offset. The minimum door clearance required is 4.5mm.
• This hinge may compensate for distorted doors. If an offest is not required, A115 hinges should be considered.
