Kilargo IS8110si Automatic Door Bottom Seal – Clear Anodised Aluminium
Original price was: $107.98.$75.59Current price is: $75.59.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

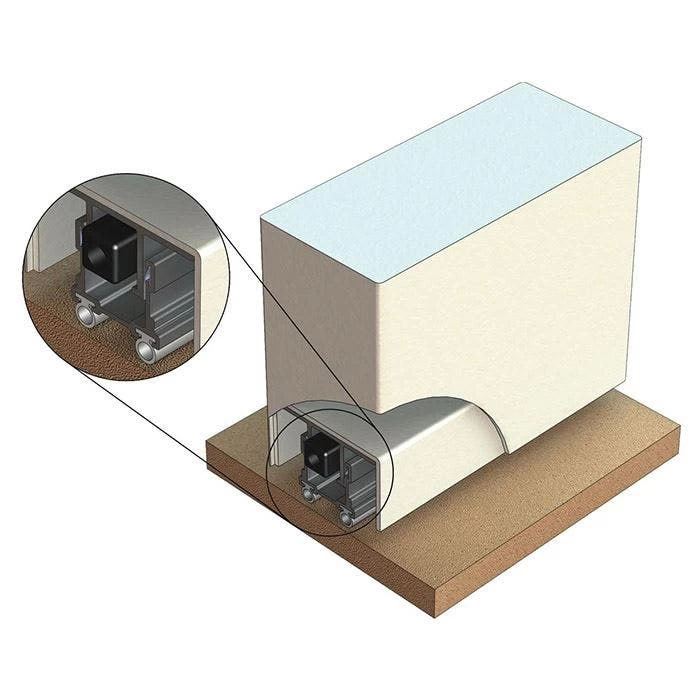

A fully-mortised, automatic “flat back” seal to suit installation to aluminium door rails for single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened by a few millimetres. The seal operates automatically by pressure against the door jamb on its adjustable strike button.
Standard Lengths with Maximum Cut-back sizes
- 610mm seal cuts to 580mm
- 820mm seal cuts to 610mm
- 920mm seal cuts to 820mm
- 1070mm seal cuts to 920mm
- 1220mm seal cuts to 1070mm
- (*Seals can be cut on site for exact dimension)
Standard Colours
- Silver anodised aluminium with grey end plates and grey silicone gasket
Approvals
- Conforms to BCA Specification C3.4 for smoke doors
- Acoustic ratings to AS1191 and ISO140.3
- Durability tests demonstrating over 1,000,000 open and close cycles

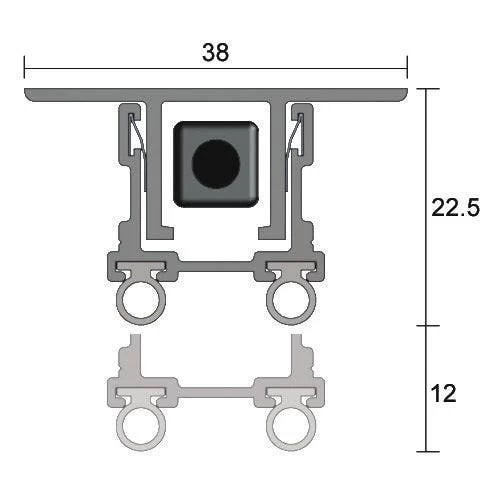

| Door Seal Length | 610mm, 820mm, 920mm, 1070mm, 1220mm |
|---|---|
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Max Door Gap | 12mm |
| Min Door Gap | 3mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Concealed |
| Contains Intumescent Material | No |
| Suitable for Door Type | Aluminium Doors |
| Suitable for Smoke Doors | Yes |
| MPN | IS8110SI |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 38mm |
| Product Height | 22.5mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
