Kilargo IS8091si Automatic Door Bottom Seal – Clear Anodised Aluminium
Original price was: $127.95.$89.57Current price is: $89.57.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

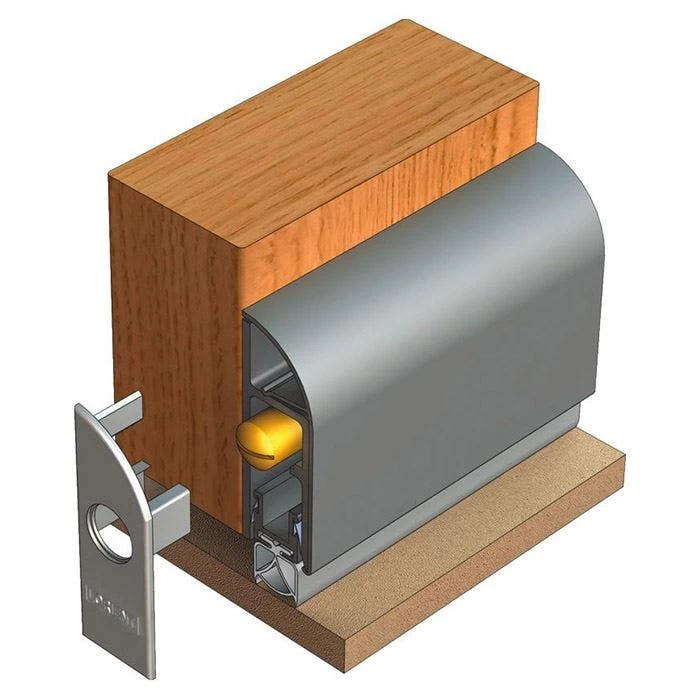

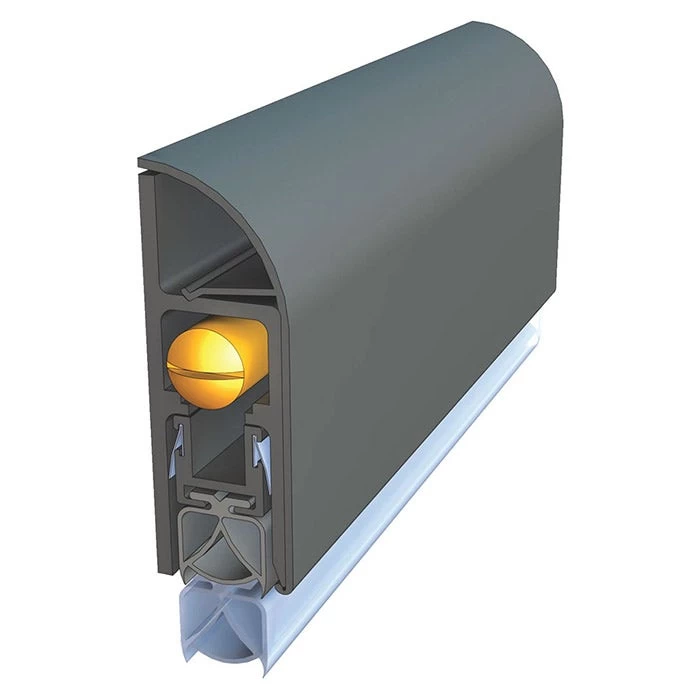

A heavy duty, automatic door bottom seal which is face-fixed to the bottom edge of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically. The seal is fixed to the face of the door bottom using the fixing screws provided. A set of rigid push-fit nylon end plates ensure longevity of the seal mechanism. An aesthetic, architectural aluminium cover plate, provides an ‘easy to clean’ surface for clean-room environments. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
Gap Size
- Min. 3mm / Max. 15mm
Standard Lengths with Maximum Cut-back sizes
- 450mm seal cuts to 275mm
- 610mm seal cuts to 450mm
- 820mm seal cuts to 610mm
- 920mm seal cuts to 820mm
- 1070mm seal cuts to 920mm
- 1220mm seal cuts to 1070mm
- 1500mm seal cuts to 1220mm
- (*Seals can be cut on site for exact dimension)
Standard Colours
- Silver anodised aluminium with grey end plates and grey silicone gasket
Approvals
- Fire tested to AS1530 Part 4
- Conforms to BCA Specification C3.4 for smoke doors
- Acoustic ratings to AS1191 and ISO140.3
- Durability tests demonstrating over 1,000,000 open and close cycles
| Door Seal Length | 450mm, 610mm, 820mm, 920mm, 1070mm, 1220mm, 1500mm |
|---|---|
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Max Door Gap | 15mm |
| Min Door Gap | 3mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Door Type | Timber Doors |
| Suitable for Smoke Doors | Yes |
| MPN | IS8091SI |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

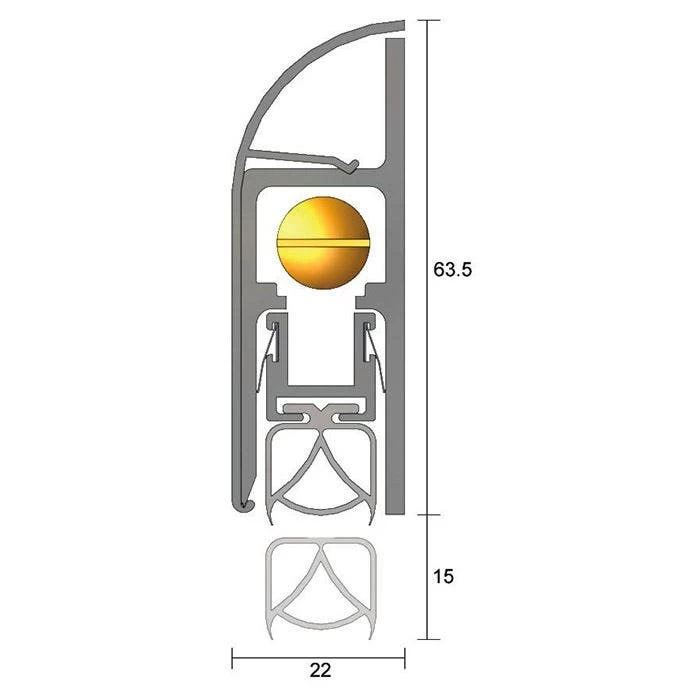

| Product Thickness | 22mm |
| Product Height | 63.5mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
