Kilargo IS8011si-KG Intumescent Automatic Door Bottom Seal – Clear Anodised Aluminium

Kilargo IS8011si-KG Intumescent Automatic Door Bottom Seal

A medium-duty, automatic door bottom seal incorporating intumescent within the silicone gasket for hot smoke applications, which can be face-fixed or semi-rebated to the bottom edge of single-action doors. It operates automatically by a spring-loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

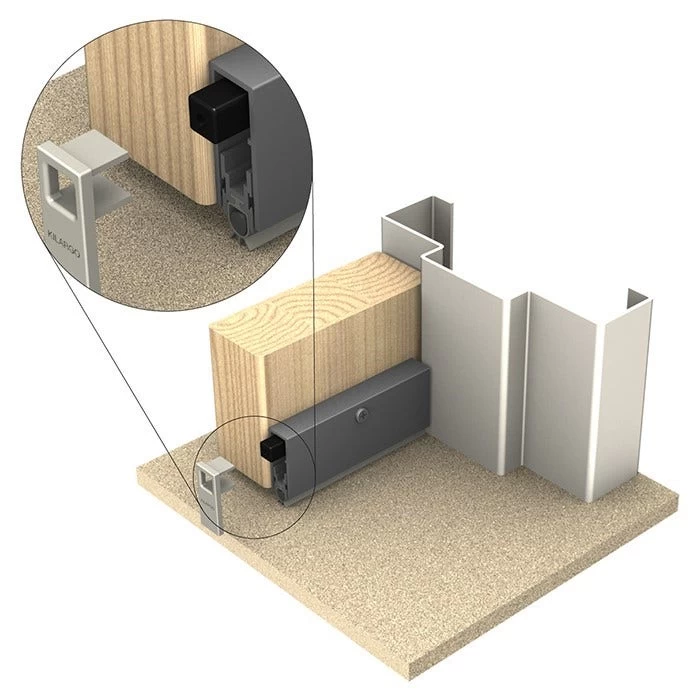

The seal is fixed to the face of the door bottom using the ferrules and mounting screws provided. When the seal is to be semi-rebated, the seal is mounted into a 35mm deep x 14mm wide machined groove in the side of the door where the seal is to be positioned. The seal operated automatically by pressure against the door jamb on its adjustable strike button. The Seal contains a high-efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Aesthetic, nylon push-fit end plates ensure longevity of the seal mechanism.

Gap Size

• Min. 3mm / Max. 15mm

Available Lengths

• 600mm
• 820mm
• 920mm
• 1070mm
• 1220mm

IS8011si Maximum allowable cut-back sizes

• 600mm seal cuts to 380mm
• 820mm seal cuts to 600mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm

(*Seals can be cut on site for exact dimension).

Standard Colours

• Silver anodised aluminium with stainless steel end plates, grey silicone gasket.
• (Black silicone gasket also available upon request.)

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies
• Conforms to BCA Specification C3.4 for smoke sealing requirements
• Acoustic ratings to AS1191, ISO140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
