Kilargo IS7130si Perimeter Seal – Clear Anodised Aluminium
Original price was: $32.85.$23.00Current price is: $23.00.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

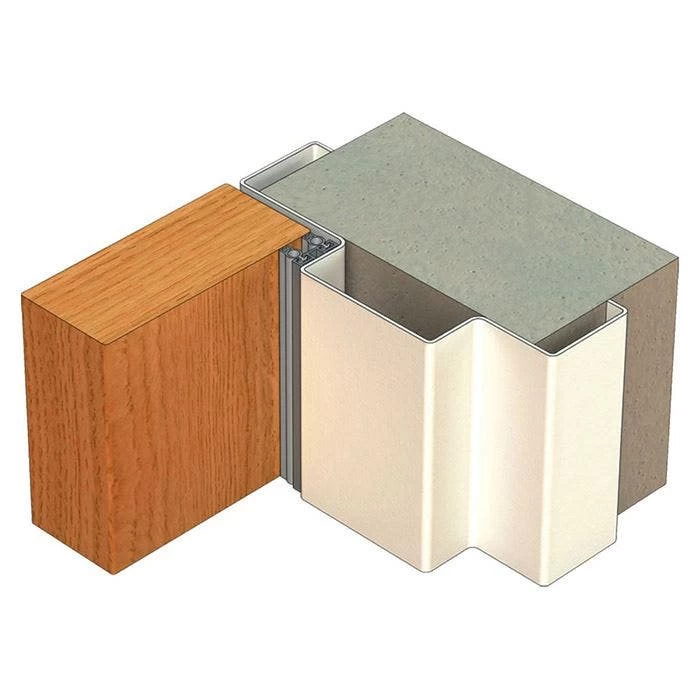

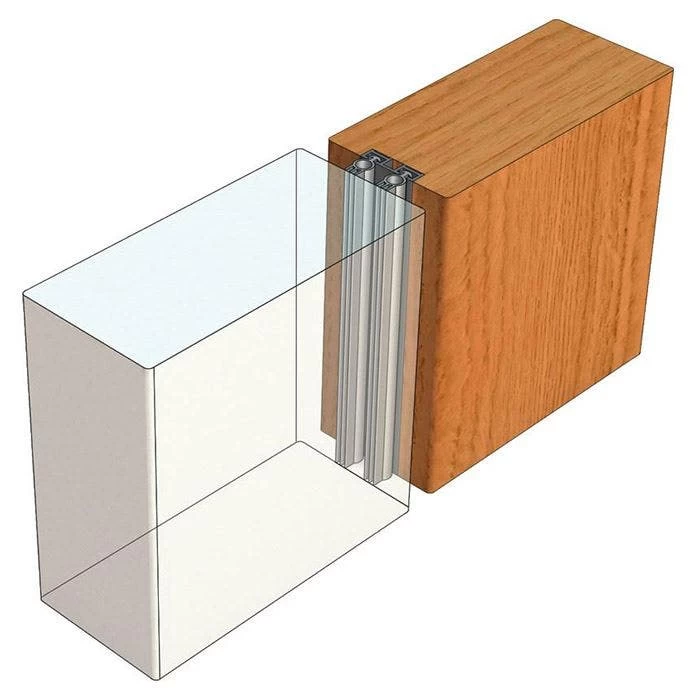

The IS7130 is an effective acoustic seal suitable for fitting to door stops of sufficient depth, around the head and jambs of single swing doors. It has two silicone compression gaskets providing excellent acoustic and air leakage containment. It can also be rebated into meeting stiles and door bottoms as a sweep-action type seal.
Gap Size
- Min. 6mm / Max. 8mm (when recessed)
- Allow 12mm to 13mm when surface-mounted
Standard Lengths
- 1000mm
- 2250mm
- 2500mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Finishes
- Silver anodised aluminium with grey silicone gaskets
(Black silicone gaskets also available upon request)
Approvals
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
| Door Seal Length | 1000mm, 2250mm, 2500mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 8mm |
| Min Door Gap | 6mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS7130SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

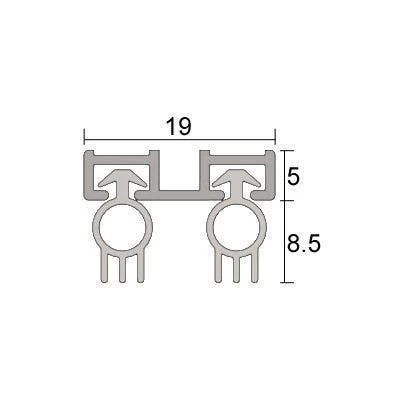

| Product Height | 13.5mm |
| Product Width | 19mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
