Kilargo IS7095si Perimeter Seal – Clear Anodised Aluminium

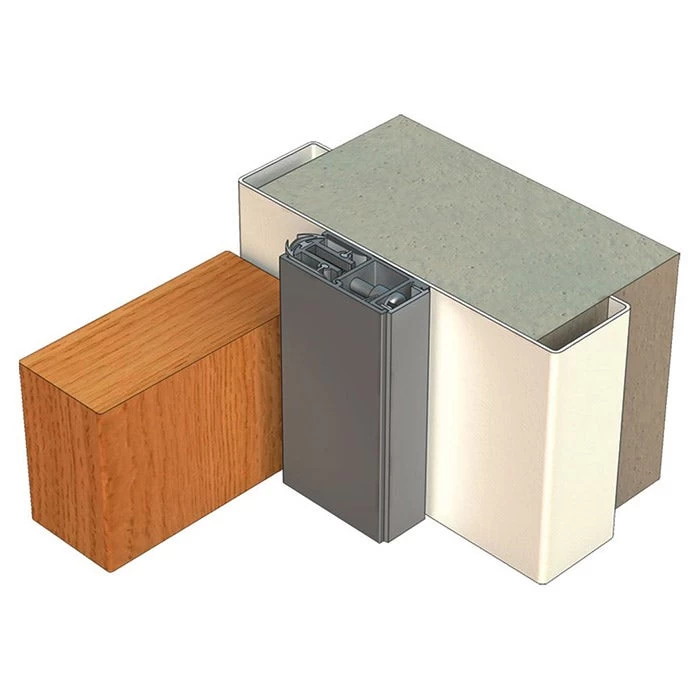

The IS7095si heavy duty, adjustable perimeter seal is designed for high performance acoustic applications. This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops,  where frames are non fire-rated. This seal can achieve up to 12mm sealing adjustment once the seal has been fitted, for maximum sound control. Fixing screws are concealed behind the aesthetic tamper-proof aluminium cover plate.

Gap Size

• Min. 0mm / Max. 12mm

Standard Lengths

• 1000mm
• 2250mm
• 2500mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
• Single Door Set (1 x 1000mm, 2 x 2100mm)
• Long Single Door Set (1 x 1000mm, 2 x 2750mm)
• Double Door Set (3 x 2100mm)
• Long Double Door Set (1 x 2100mm, 2 x 2750mm)

Standard Finishes

• Silver anodised aluminium with grey silicone gasket and grey PVC rigid cover strip
• (Black silicone gasket and cover strip also available upon request)

Fixing

• When fixing the IS7095si seal to rebated frames of single doors, specify a long back set door latch

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrating over 100,000 open & close cyclesand close cycles
