Kilargo IS7090si Perimeter Seal – Clear Anodised Aluminium

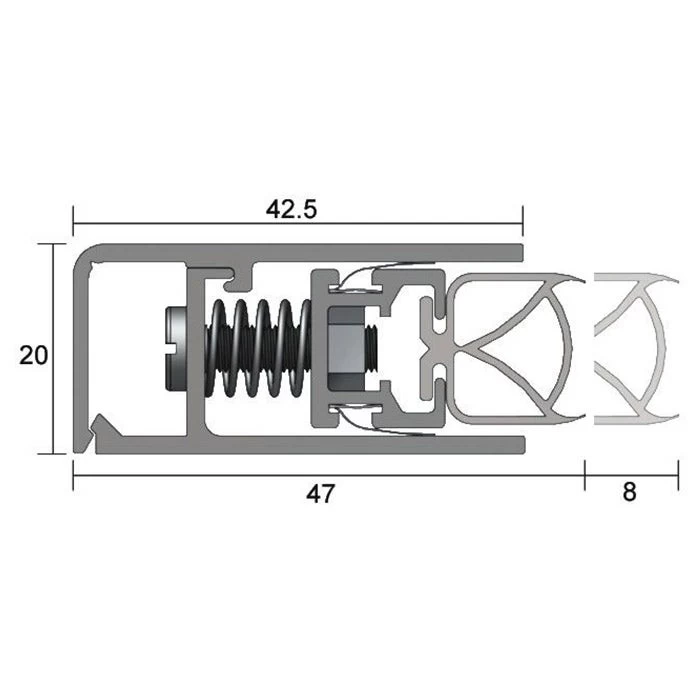

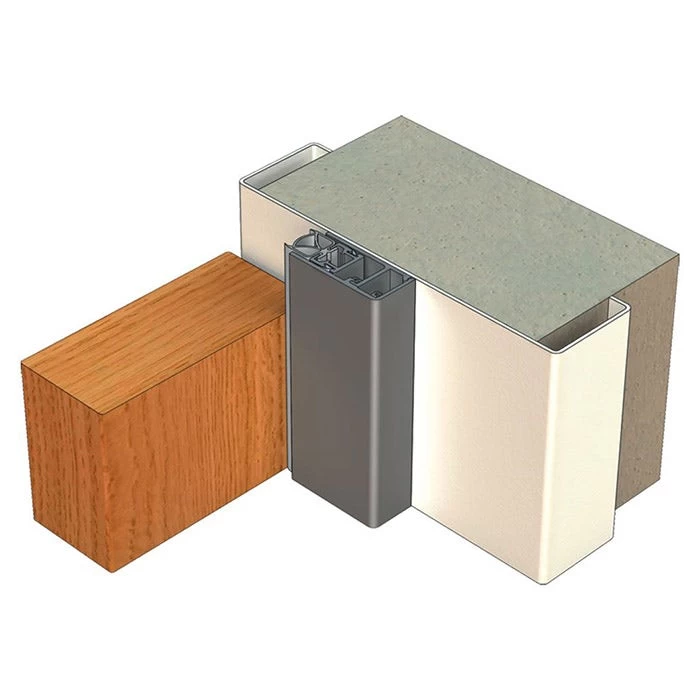

IS7090si self-adjusting and adjustable (spring-loaded) perimeter seal is designed for high performance acoustic applications. This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops, where frames are non fire-rated. It’s unique spring loaded mechanism, automatically self-adjusts to cater for movement or uneven doors. It is also mechanically adjustable to ensure the desired seal is maintained. Durable polypropylene fins are incorporated within the gasket housing to provide additional smoke and acoustic sealing properties. An aesthetic, anodised aluminium tamper-proof cover plate simply clips onto the main carrier to conceal fixings.

Gap Size

• Min. 0mm / Max. 8mm

Standard Lengths

• 1000mm
• 2250mm
• 2500mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
• Single Door Set (1 x 1000mm, 2 x 2100mm)
• Long Single Door Set (1 x 1000mm, 2 x 2750mm)
• Double Door Set (3 x 2100mm)
• Long Double Door Set (1 x 2100mm, 2 x 2750mm)

Standard Finishes

• Silver anodised aluminium with grey silicone gasket

Fixing

• When fixing the IS7090si seal to rebated frames of single doors, specify a long back set door latch

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 100,000 open and close cycles
