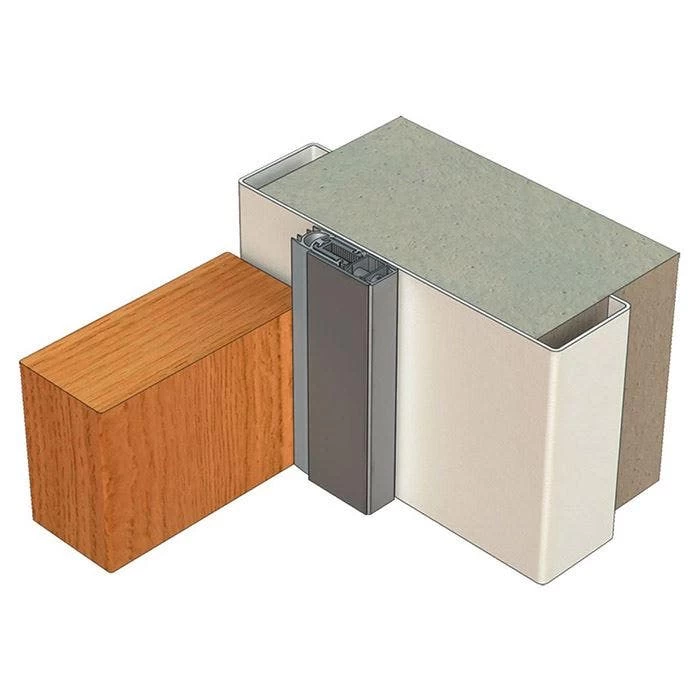

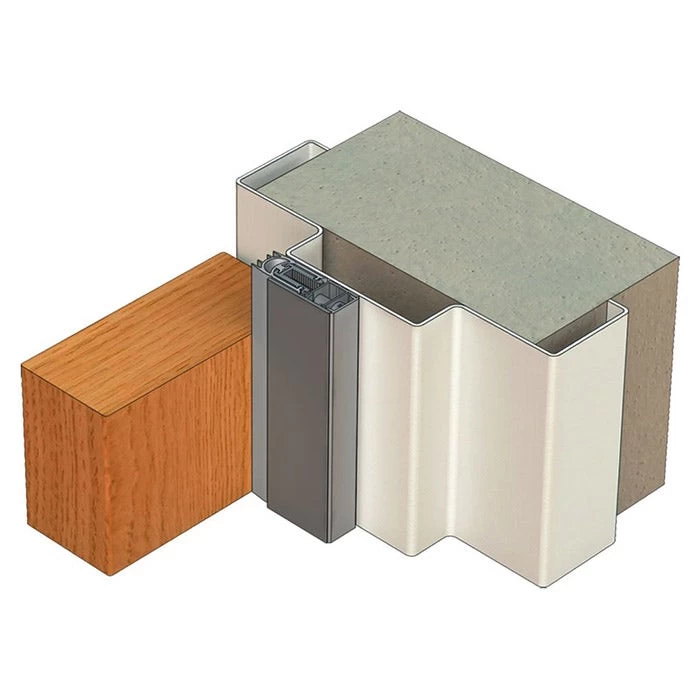

The IS7087si adjustable perimeter seal is designed for high performance acoustic applications and is fitted to the head and jambs of door frame perimeters, with or without door stops. This seal can achieve up to 10mm sealing adjustment once the seal has been fitted for maximum sound control.
Fixing screws are concealed behind an aesthetic, tamper-proof aluminium cover plate. The IS7080si version (silicone gasket) has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

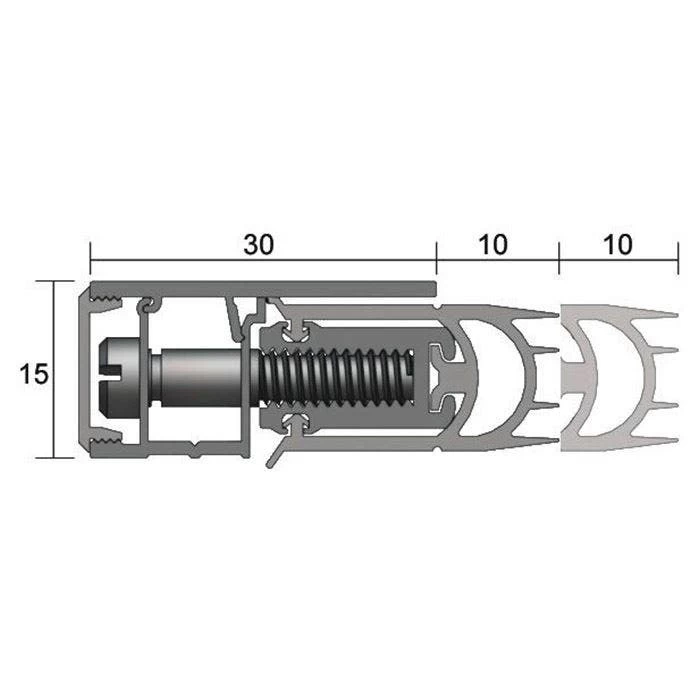

Gap Size
- Min. 0mm / Max. 10mm
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
- Single Door Set (1 x 1000mm, 2 x 2100mm)
- Long Single Door Set (1 x 1000mm, 2 x 2750mm)
- Double Door Set (3 x 2100mm)
- Long Double Door Set (1 x 2100mm, 2 x 2750mm)
Standard Finishes
- Silver anodised aluminium with grey silicone gasket and grey PVC rigid cover strip
Fixing
- When fixing the IS7087si seal to rebated frames of single doors, specify a long back set door latch
Approvals
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
- Durability tests demonstrating over 100,000 open and close cycles
