Kilargo IS7085si Perimeter Seal – Clear Anodised Aluminium
Original price was: $50.78.$35.55Current price is: $35.55.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

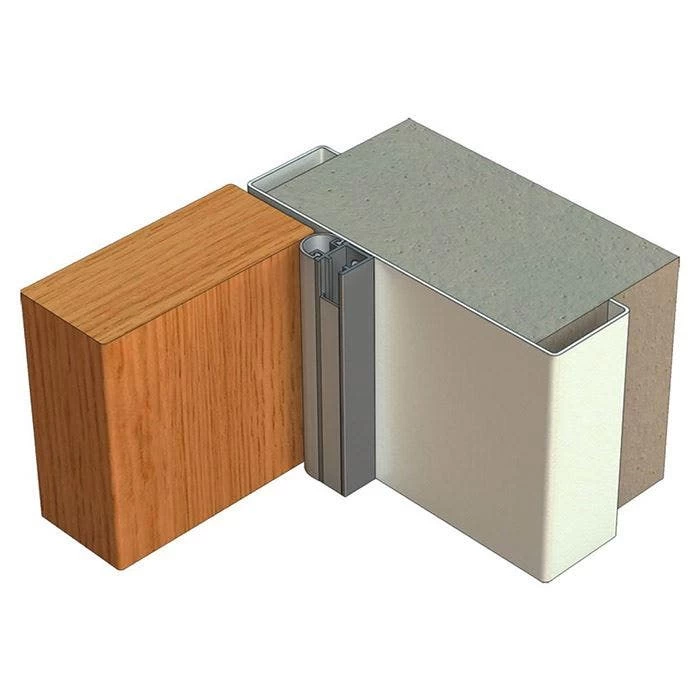

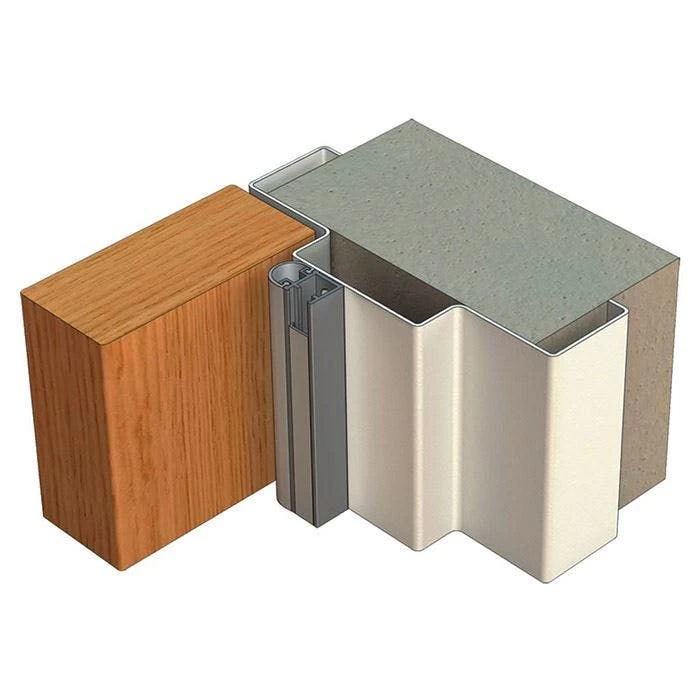

The IS7085si is an aesthetic compact perimeter seal, specifically designed for ‘clean room’ applications. The highly resilient, smooth silicone rubber gasket allows for easy cleaning and assists in preventing the movement of air borne contaminates, whilst also contributing to reduced sound transmission. This seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Gap Size
- Min. 0mm / Max. 7mm
Standard Lengths
- 1000mm
- 2250mm
- 2500mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
- Single Door Set (1 x 1000mm, 2 x 2100mm)
- Long Single Door Set (1 x 1000mm, 2 x 2750mm)
- Double Door Set (3 x 2100mm)
- Long Double Door Set (1 x 2100mm, 2 x 2750mm)
Standard Finishes
- Silver anodised aluminium with grey silicone gasket and grey cover strip
- (black anodised aluminium with black silicone gasket and black cover strip to special order)
Fixing
- When fixing IS7085si to rebated frames of single doors, specify a long back set door latch
Approvals
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
| Door Seal Length | 1000mm, 2250mm, 2500mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 7mm |
| Min Door Gap | 0mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS7085SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

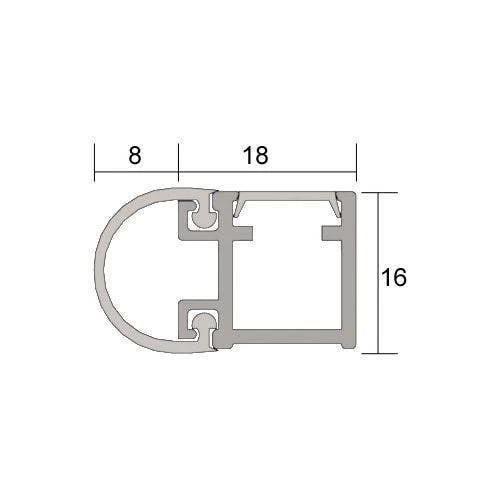

| Product Height | 16mm |
| Product Width | 26mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
