Kilargo IS7080si Perimeter Seal – Clear Anodised Aluminium

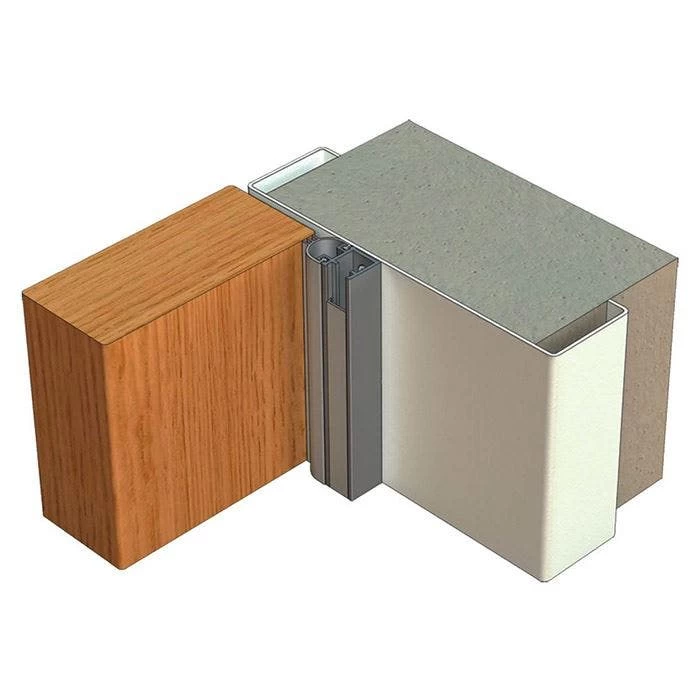

The IS7080si is an aesthetically designed, compact perimeter seals, proven to be effective acoustic, cold smoke, light and weather seals. Both can be installed in lieu of a door stop on both steel and timber door frames (where frames are non fire-rated). The fixing holes are pre-drilled and slotted to allow the seal to be adjusted and positioned accurately. A decorative cover strip is supplied to conceal fixings.

The IS7080si version (silicone gasket) has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

Gap Size

• Min. 0mm / Max. 10mm

Standard Lengths

• 1000mm
• 2250mm
• 2500mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
• Single Door Set (1 x 1000mm, 2 x 2100mm)
• Long Single Door Set (1 x 1000mm, 2 x 2750mm)
• Double Door Set (3 x 2100mm)
• Long Double Door Set (1 x 2100mm, 2 x 2750mm)

Standard Finishes

• Silver anodised aluminium with grey silicone gasket and grey cover strip

Fixing

• When fixing IS7080 to rebated frames of single doors, specify a long back set door latch

Approvals

• IS7080si fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies (silicone version)
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
