Kilargo IS7071si Meeting Style – Astragal Seal – Clear Anodised Aluminium

An astragal seal designed to be fitted to plain or rebated meeting stiles of single swing and double swing, double doors. Two IS7071si seals can be installed onto one stile, allowing a space for a latch between the seals if required. These seals can be surface mounted or rebated. It provides an excellent acoustic, smoke, light, dust and weather seal. IS7071si can be utilised as a perimeter seal around the head and jambs of single and double doors.

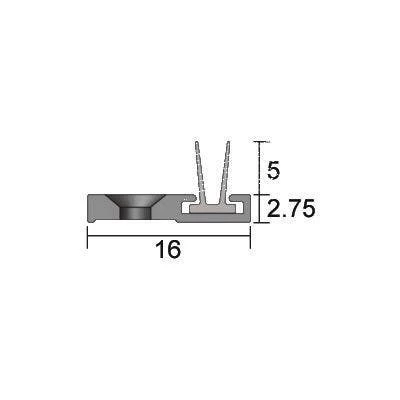

Gap Size

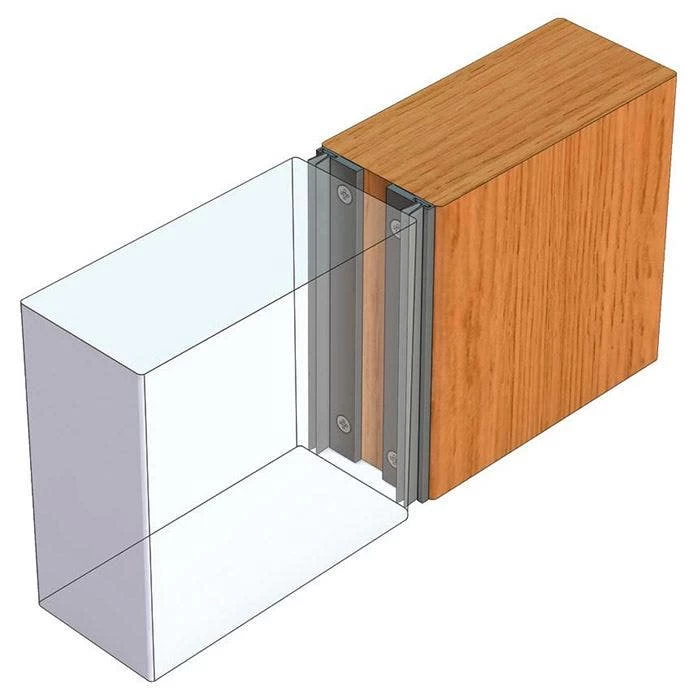

• Surface-mounted: Min. 5mm / Max. 7mm

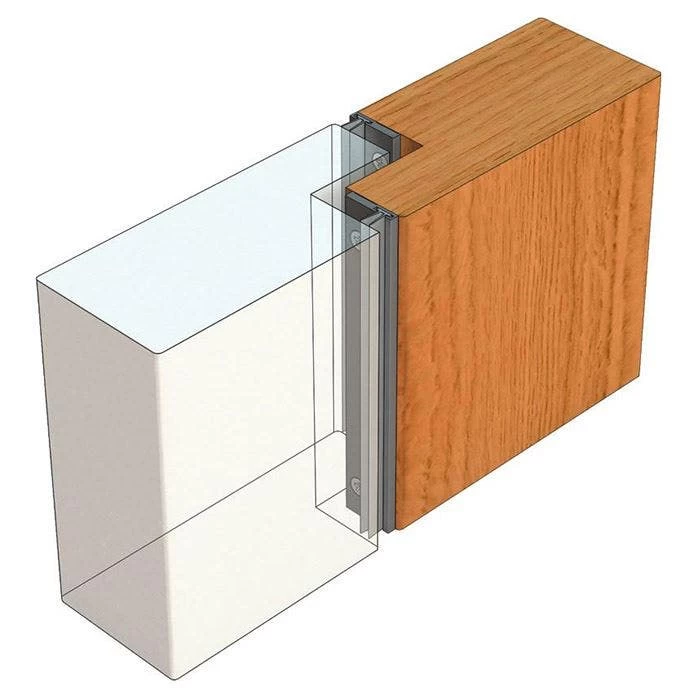

• Rebated application: Min. 2mm / Max. 4mm

Standard Lengths

• 2250mm
• 2500mm
• 3000mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)

Standard Finishes

• Silver anodised aluminium with grey silicone twin-fin gasket.
• (black anodised aluminium with black silicone twin-fin gasket to special order)

Fixing

• Fixing screws are supplied
• Fixing holes are pre-drilled and countersunk
• A door sequence selector should be considered unless one leaf is intended to be fixed

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 (Perimeter Seal)
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with NCC Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 1,000,000 open & close cycles
