Kilargo IS7060si Meeting Style – Astragal Seal – Clear Anodised Aluminium
Original price was: $77.99.$54.59Current price is: $54.59.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

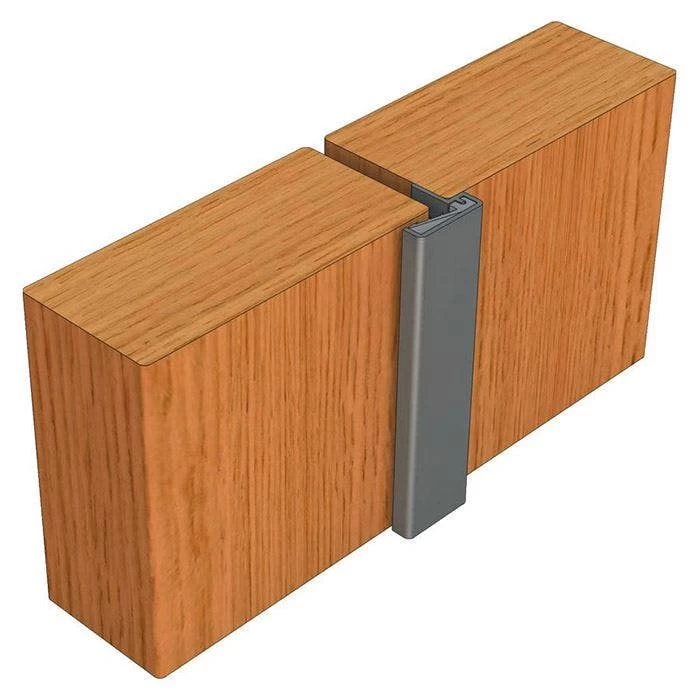

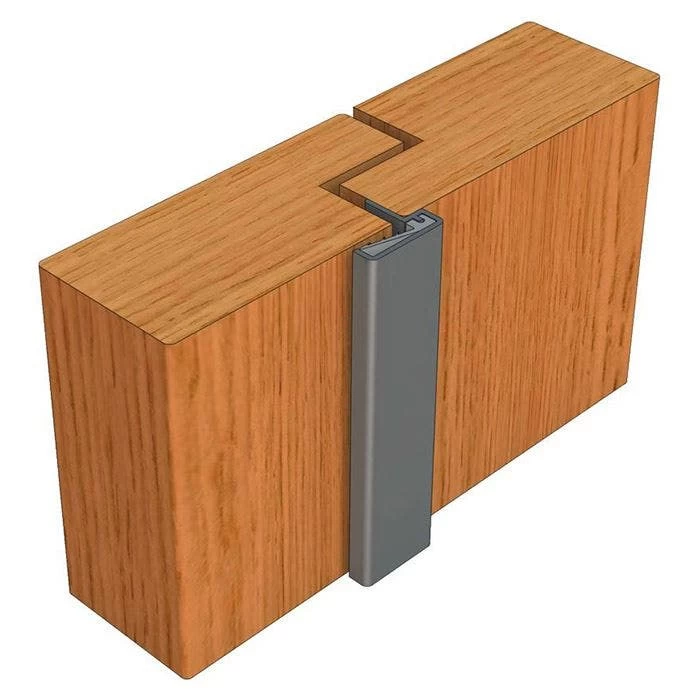

An astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active). It provides an excellent acoustic, smoke, light, dust and weather seal. The thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches.
Gap Size
- Min. 2.5mm / Max. 10mm
Standard Lengths
- 2250mm
- 2500mm
- 3000mm
- Also available in: 250mm increments from 2000mm to 3500mm (Special Order Only)
Standard Finishes
- Silver anodised aluminium with grey silicone gasket
- (black anodised aluminium with black silicone gasket to special order)
Fixing
- A door sequence selector should be considered unless one leaf is intended to be fixed
Approvals
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies.
- Conforms with NCC Specification C3.4 smoke sealing requirements.
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2.
| Door Seal Length | 2250mm, 2500mm, 3000mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Self Adhesive | No |
| Max Door Gap | 10mm |
| Min Door Gap | 2.5mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS7060SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 20mm |
| Product Width | 25mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
