Kilargo IS7020si Perimeter Seal – Clear Anodised Aluminium
Original price was: $41.91.$29.34Current price is: $29.34.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

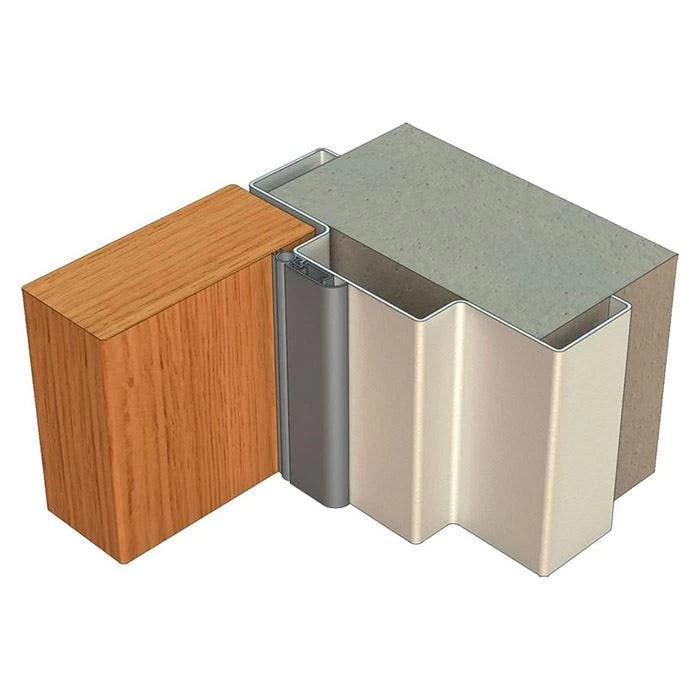

The IS7020si is aesthetically designed, a slim-line compression type perimeter seal for installation around the head and jambs of single swing doors. It is proven to be effective acoustic, smoke, light, dust and weather seals. The aluminium carrier is pre-drilled and slotted for adjustable retrofit installation. The easy to install, ‘snap-on’, anodised aluminium (or coloured PVC) cover plates provide concealed fixings.
Gap Size
- Min. 0mm / Max. 6mm
Standard Lengths
- 1000mm
- 2250mm
- 2500mm
- 1 x 1000mm, 2 x 2100mm
- 1 x 1000mm, 2 x 2750mm
- 3 x 2100mm
- 1 x 2100mm, 2 x 2750mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Finishes
- Silver anodised aluminium with grey silicone gasket
- (Black silicone gaskets also available upon request)
Fixing
- When fixing IS7020si to rebated frames of single doors, specify a long back set door latch
Approvals
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
| Door Seal Length | 1000mm, 2250mm, 2500mm, Single Door Set (1x1000mm, 2x2100mm), Double Door Set (3x2100mm), Long Single Door Set (1x1000mm, 2x2750mm), Long Double Door Set (1x2000mm, 2x2750mm) |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | No |
| Max Door Gap | 6mm |
| Min Door Gap | 0mm |
| Gasket Material | Silicon |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS7020SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

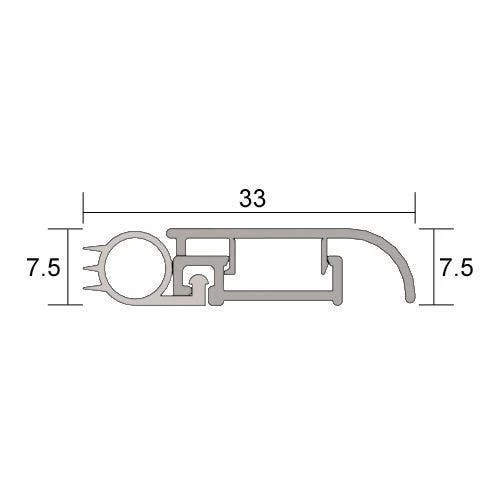

| Product Height | 7.5mm |
| Product Width | 33mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
